10x285.75 To 10x285.75 10 Lug Wheel Spacers Adapters Hub Centric Billet
** This Product Is Made To Order, May Take Up To 7-10 Business Days To Ship **

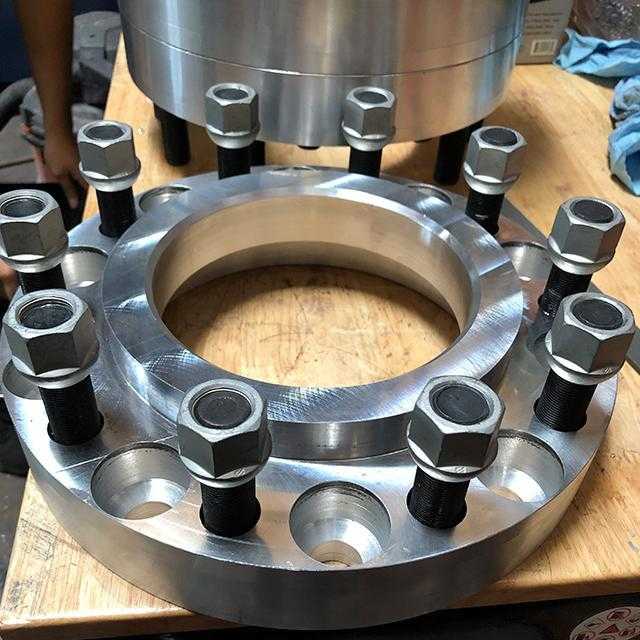

These wheel adapters are commonly installed between the rear dually wheels after completing a 10-lug wheel adapter conversion. Typically, 13.50-wide tires are very close to each other, and these adapters provide the necessary clearance to prevent rubbing.
Need a custom size or thickness? Contact us at (310) 763-1437.
Sold As : 1 Pc Wheel Adapters With Mounting Lug Bolts/ Lug Nuts
(If You Need A Complete Set, Select 4 Under Quantity)
Features
- Designed to fit 13.50” or wider tires, preventing rear dually tires from rubbing against each other
- Compatible with both Alcoa and aftermarket wheels
- Hub and Wheel Centric, ensuring no vibration even at high speeds
- Engineered for extreme-duty vehicles, safe for heavy-duty towing
- Proven to support towing capacities of up to 36,000 lbs with our adapters
- Includes all necessary mounting hardware
Specifications
- Bolt Pattern: 10x285.75 MM
- Hub Bore: 220.1 MM
- Wheel Bolt Pattern: 10x285.75 MM
- Wheel Bore: 220.1 MM
- Thread Pitch: 22x1.5
- Thickness: 2" Most Popular, Other Sizes Available
- Wheel Lip: 0.50"
- Material: Billet Aluminum 6061 T-6
- Hardware: 10.9 Grade
- Finish: Raw Aluminum
- Torque Specs: Factory specifications recommended
Vehicle Compatibility
New wheels being installed must have a 10x285.75 MM bolt pattern.
Compatible Models
| Year | Make | Model | Bolt Pattern |
|---|---|---|---|
| Any | Any | Any | 10x285.75 MM |
