Description

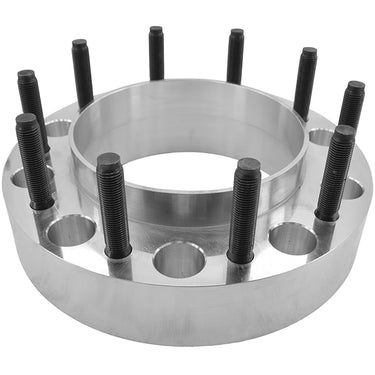

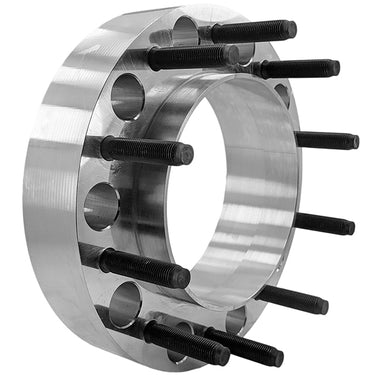

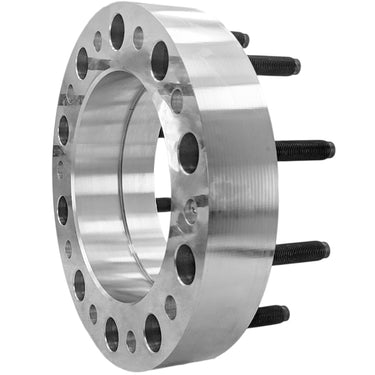

GM 8x180 MM To 10x225 MM 8 To 10 Lug Wheel Adapters Billet Aluminum

** This Product Is Made To Order, May Take Up To 7 Business Days To Ship **

Made Out of USA Grade 6061 T-6 Aluminum Billet Bars.

These Adapters Will Change Your Truck's 8x180 MM Bolt Pattern To 10x225 MM.

Fully Hub Centric.

Installation Hardware Included.

1.5" Thick Is The Most Common Thickness For This Conversion.

Looking For A Custom Size Or Thickness? Give Us A Call ( 310 ) 763-1437

FEATURES

  • Made Out of 6061 T-6 Aluminum Billet Bars
  • Allows You To Put 19.5 Wheels On Your Truck
  • These Adapters Will Work With Alcoa & Aftermarket Wheels
  • Hub/Wheel Centric: Will Not Vibrate At High Speeds
  • Improve Vehicles Handling Characteristics
  • Enhance Vehicle Appearance; Aggressive Stance
  • Specifically Design For Extreme Duty Vehicles, Towing Safe
  • We Have Towed 36,000 LBS With Our Adapters
  • Mounting Hardware Included
SPECIFICATIONS
  • Vehicle Bolt Pattern: 8x180 MM
  • Vehicle Hub Bore: 124.1MM
  • Wheel Bolt Pattern: 10x225 MM
  • Wheel Bore: 170.1 MM
  • Thread Pitch: 14x1.5
  • Thickness: 1.5"
  • Front Wheel Lip: 0.50"
  • Rear Wheel Lip: 1.5"
  • Material : Billet Aluminum 6061 T-6
  • Hardware: 10.9 Steel
  • Finish: Raw / Black Finish
  • Torque Specs: Factory Specs Recommended
  • Pressed In Studs & Lug Nuts Included
VEHICLE COMPATIBILTY
  • New Wheels Being Installed Must Be 10x225 MM.
Year Make
Model Bolt Pattern
2011-2021
Chevrolet
Silverado 2500
8x180 MM
2011-2021
Chevrolet
Silverado 3500 SRW
8x180 MM
2011-2021
GMC
Sierra 2500
8x180 MM
2011-2021
GMC
Sierra 3500 SRW
8x180 MM

FREQUENTLY ASKED QUESTIONS
  • What Is The Difference Between Aluminum And Steel?

The main difference between aluminum and steel is the weight difference which affects the rotating mass. Tensile strength for our billet 6061 t-6 aluminum is 45,000 PSI and for steel is 53,700 PSI. Our Billet Adapters are 2X thicker than steel, thus making them almost double on combined PSI. A 1.5" Aluminum Adapter weighs about 20 LBS, and a 1.5" Steel Adapter weighs close to 100 lbs. This extra rotating mass is unnecessary. Below is a side-by-side comparison of the 1.5" Aluminum and 0.75" Steel, which are the standard sizes we sell. The wheels you are going to be installing will most likely be made out of aluminum. In fact, Big Rigs that carry 70,000+ lbs. come with aluminum wheels. We sell both steel and aluminum adapters, and at the end of the day it's what makes you comfortable and works for your application.

  • Why Is The 1.5" Thick Adapters The Most Standard Size In Aluminum?

This 1.5" is the most standard because if we were to make them any smaller, you will either have to notch your wheel, and/or use the reverse studs method. Both methods are complex, so a 1.5" Thick adapters will avoid both issues. The bolt pattern is 180 MM and the wheel's hub bore is 170.1 MM. Anything smaller than 1.5" will not clear the wheel.

  • What Is The Maximum Towing Capacity?

The maximum towing capacity we have tested on our adapters is 36,000 lbs. We tested this on a 2020 Ram 3500 Diesel which is rated to tow 32,000 lbs. with zero issues.

  • Will These Work On Single Rear Wheel Trucks?

Front Wheels: For the front, you will need a factory hub extension which is about 3" long in order to properly sit any dually wheel. Then you can install this 8 to 10 lug wheel adapters. If you don't have that factory hub extension, or cannot source one we can make you a 3" wheel adapter for the front. This will compensate for the hub extension.

Rear Wheels: For the rear, the 1.5" thick will have enough clearance to mount dually wheels and clear the leaf springs.

  • My Stud Got Damaged, Can I Buy Replacement Studs?

If for any reason you need to get replacement studs, we also carry them. Please look at the Lug Nuts & Spacers tab for more info.

INSTALLATION INSTRUCTIONS
  • Minimal Trimming OF Your Factory Studs Is Required.
  • Detailed Installation Instructions Will Be Uploaded.

    PRODUCT VIDEOS
    • Product Videos Will Be Updated Soon
    LUG NUTS & SPACERS

    Replacement Studs For 10x225 MM Wheel Adapters

    Thread Pitch Studs Placement Link
    14x1.5
    Replacements Front or Rear Replacement Studs

    Lug Nuts To Mount The Adapters On Your Truck

    Thread Pitch Seat Style Link
    14x1.5 Conical
    3 Series 32 Pc Lug Nuts

    Lug Nuts To Mount Factory Wheels On Adapters

    Thread Pitch
    Seat
    Style
    Link
    14x1.5 Flat Washer OEM Factory Lug Nuts

    Wheel Adapters

    Bolt Pattern Wheel Pattern Hub / Wheel Bore Link
    10x225 MM
    10x225 MM
    170.1 MM Wheel Adapters

    Wheel Spacers

    Bolt Pattern Wheel Pattern Hub Bore Link
    10x225 MM
    10x225 MM
    170.1 MM Wheel Spacers

    WARRANTY
    • Further Warranty Information Will Be Updated Soon
