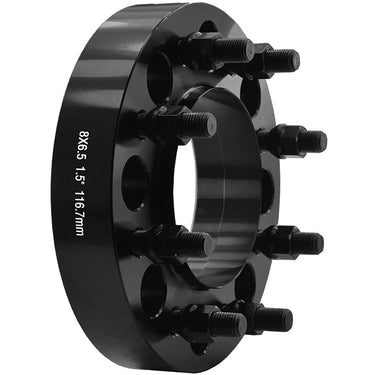

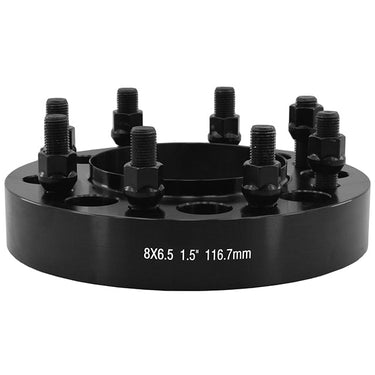

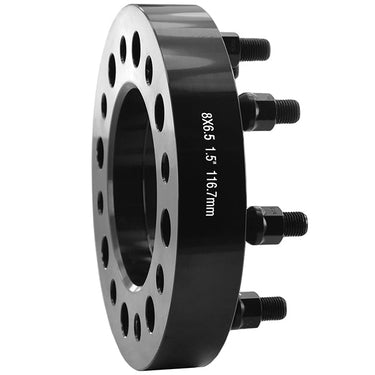

2005-2018 Dodge Ram 3500 Dually 8x6.5 Wheel Spacers Hub Centric Steel
Fully Hub Centric Wheel Spacers For Dually's
Made to Order: This product is made to order and may take up to 7 business days to ship.
Sold As: 1 Pc Wheel Spacer Adapter with Mounting Lug Nuts
Complete Set: If you need a complete set, select 4 under quantity.
Aluminum vs Steel: Steel is much stronger than aluminum but heavier.
Custom Sizes: Looking for a custom size or thickness? Give us a call at (310) 763-1437.
Features
- Made Out Of 1018 Steel Cold Rolled Bars
- Compatible with both factory and aftermarket wheels.
- Hub/Wheel Centric design ensures no vibration at high speeds.
- Enhances vehicle handling characteristics.
- Corrects incorrect wheel offsets.
- Provides an aggressive stance, improving vehicle appearance.
- Specifically designed for extreme duty vehicles and safe for towing.
- Includes all necessary mounting hardware.
- Comes with a limited lifetime warranty.
- Made in Lynwood, California, USA
Specifications
- Vehicle Bolt Pattern: 8x6.5"
- Vehicle Hub Bore: 121.3 MM
- Wheel Bolt Pattern: 8x6.5"
- Wheel Bore: 121.3 MM
- Thread Pitch: 14x1.5
- Thickness: 1" - 5"
- Lip Thickness: 0.38"
- Material: 1018 Steel
- Hardware: Grade 8
- Finish: Raw Steel
- Torque Specs: Factory specs recommended
Vehicle Compatibility
| Year | Make | Model | Thread Pitch |
|---|---|---|---|
| 2003-2011 | Dodge | Ram 3500 | 9/16-18 |
| 2012-2018 | Dodge | Ram | Ram 3500 | 14x1.5 |
Frequently Asked Questions
What is the maximum towing capacity?
Our wheel spacers and adapters will not limit your vehicle's towing performance or capacity. When installed correctly, you will not experience any issues.
Installation Instructions
- It is very important that your studs do not extend past the face of the wheel spacer/adapter. If they do, you will need to trim them down.
- Minimal trimming of your factory studs is required for adapters 1.5" or smaller.
- Torque Specifications: Use factory torque specifications to mount the wheel spacer adapter and your wheels
- It is recommended to use blue or red Loctite on the vehicle stud side
- We recommend to coat it with a protective paint to prevent rust.
