8x275 MM To 10x285.75 Hub Centric Wheel Adapters Spacers Billet

$1,000.00
Shipping calculated at checkout.
VW-HCA-2P-8275/102853AL-FRT+M3-2215
Kit
Thickness

Pickup available at Venum Wheel

Usually ready in 5+ days

8x275 MM To 10x285.75 Hub Centric Wheel Adapters Spacers Billet

** This Product Is Made To Order, May Take Up To 15 Business Days To Ship **

Adapters are sold as a single pieces.

Massive Adapters To Handle The Weight!

These adapters are the only way to mount 10x285.75 wheels on 8x275 mm bolt pattern trucks. We custom make wheels for the 8x275 mm trucks , from 20" up to 30". Multiple kits available including , billet center caps and lug nut covers.

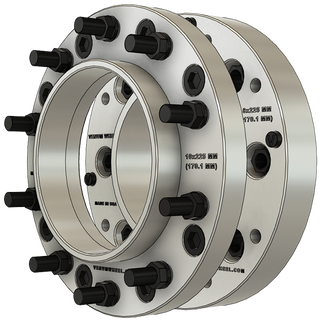

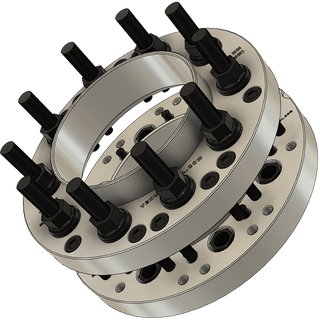

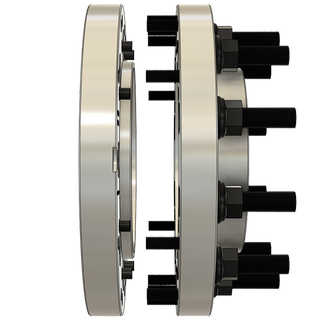

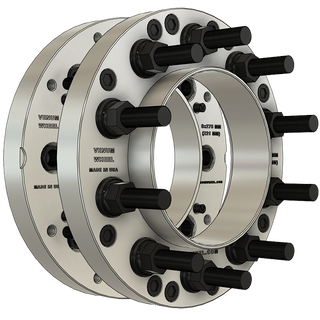

The wheel adapter consists of two separate pieces that will be assembled together:

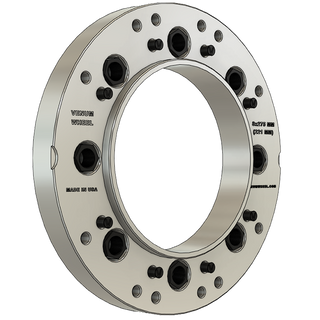

Bottom Piece Attachment: The bottom piece of the adapter is attached directly to the vehicle's hub. This is where the original wheel would of attached.

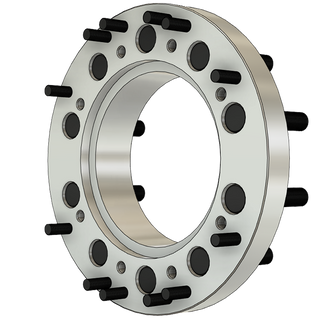

Second Piece Attachment: The second piece of the adapter is attached to the bottom piece. This is where the new wheel will be mounted. This second piece allows for a different bolt pattern.

Securing Mechanism: The second piece is secured to the bottom piece using countersink allen bolts. Countersinking involves creating a recess in the material to allow the bolt head to sit flush or below the surface to avoid interference.

Dowel Pins: Dowel pins are used in conjunction with the countersink bolts to provide additional alignment and stability. They ensure that the two pieces are accurately aligned before tightening the bolts.

Thread Locker: Thread locker is recommended for specific areas:
- On the lug nuts attached to the first plate (bottom piece). This helps prevent the lug nuts from loosening due to vibrations and normal driving conditions.
- On the countersink bolts that secure the second piece to the bottom piece. This prevents these bolts from coming loose over time.

FEATURES

  • Compatibility: These adapters are designed to work with Alcoa and aftermarket wheels.
  • Hub/Wheel Centric: The adapters are hub and wheel centric, which means they provide a secure fit and will not vibrate at high speeds.
  • Hardware Included: The kit includes pressed-in studs and lug nuts, as well as all necessary hardware for installation.

SPECIFICATIONS

Bolt Pattern: 8x275 MM - Kodiak, F650 , Chevy 4500 5500 & More

Hub Bore: 221 mm

Wheel Pattern: 10x285.75 MM (Semi Bolt Pattern)

Wheel Bore: 220.1 mm

Thickness: 3 Inches Total (Both Plates Together)

Thread Pitch: 22x1.5

Front Wheel Lip: 0.50"

Rear Wheel Lip: 1.5"

Front Stud Length: 3"

Rear Stud Length: 4"

Finish: Raw Aluminum

Material: Billet 6061 Aluminum T-6

Hardware: 10.9 Grade Steel

Torque Specs: 350 Ft/Lb ( Recommended

Please note that proper installation and safety precautions are essential when using wheel adapters, as incorrect installation could lead to wheel separation, loss of control, and accidents. If you're not confident in performing this installation yourself, it's advisable to seek professional help or consult with experts in the field.
