Venum Wheel

8x210 MM To 10x225 MM Hub Centric Wheel Adapters 8 To 10 Lug Billet Aluminum

$375.00
Shipping calculated at checkout.
VW-HCA-8210/1022525AL-154.1-FRT-LN-3141-8
QTY | Thickness
Hub Bore | Vehicle
QTY | Thickness
Hub Bore | Vehicle

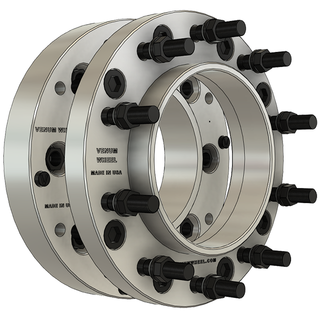

8x210 MM To 10x225 MM Hub Centric Wheel Adapters 8 To 10 Lug Billet Aluminum

** This Product Is Made To Order, May Take Up To 7 Business Days To Ship **

Designed & Machines in House!

These Adapters Will Change Your Truck's 8x210 MM Bolt Pattern To 10x225 MM.

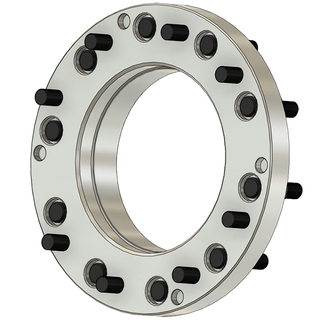

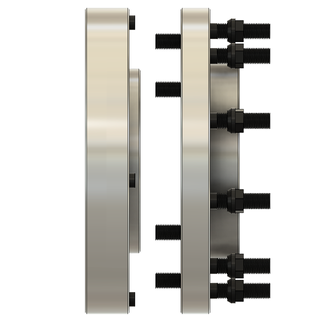

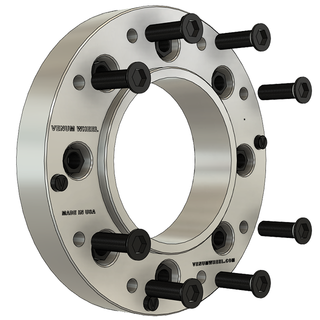

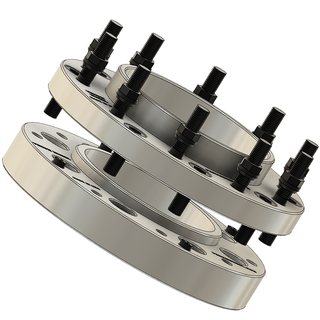

Each Adapter is made up of 2 Components, Fully Hub Centric to the truck, the adapter plates and the wheels. Your wheels will not float on the studs with our adapters.

Improved Design, Adapters plates use dowel pins for extra security.

Installation Hardware Included.

Looking For A Different Size Or Thickness? Give Us A Call ( 310 ) 763-1437

FEATURES

  • Made Out of 6061 T-6 Aluminum Billet Bars
  • Allows You To Put 19.5 Wheels On Your Truck
  • These Adapters Will Work With Alcoa & Aftermarket Wheels
  • Hub/Wheel Centric: Will Not Vibrate At High Speeds
  • Improve Vehicles Handling Characteristics
  • Enhance Vehicle Appearance; Aggressive Stance
  • Specifically Design For Extreme Duty Vehicles, Towing Safe
  • We Have Towed up to 30,000 LBS With Our Adapters
  • Mounting Hardware Included

SPECIFICATIONS

  • Vehicle Bolt Pattern: 8x210 MM
  • Vehicle Hub Bore: 154.1
  • Wheel Bolt Pattern: 10x225 MM
  • Wheel Bore: 170.1 MM
  • Thread Pitch: 14x1.5
  • Thickness: 2.5"
  • Front Wheel Lip: 0.50"
  • Rear Wheel Lip: 1"
  • Material : Billet Aluminum 6061 T-6
  • Hardware: 10.9 Steel
  • Finish: Raw / Black Depends on Material Availability
  • Torque Specs: Factory Specs Recommended
  • Pressed In Studs & Lug Nuts Included

VEHICLE COMPATIBILTY

  • New Wheel Being Installed Must Be 10x225 MM.
Year Make Model Bolt Pattern
2011-2024 Chevrolet Silverado 3500 Dually
8x210 MM
2011-2024
GMC
Sierra 3500 Dually
8x210 MM



FREQUENTLY ASKED QUESTIONS

  • What Is The Difference Between Aluminum And Steel?

The main difference between aluminum and steel is the weight difference which affects the rotating mass. Tensile strength for our billet 6061 t-6 aluminum is 45,000 PSI and for steel is 53,700 PSI. Our Billet Adapters are 2X thicker than steel, thus making them almost double on combined PSI. A 1.5" Aluminum Adapter weighs about 20 LBS, and a 1" Steel Adapter weighs close to 60 lbs. This extra rotating mass is unnecessary. Below is a side-by-side comparison of the 1.5" Aluminum and 1" Steel, which are the standard sizes we sell. The wheels you are going to be installing will most likely be made out of aluminum. In fact, Big Rigs that carry 70,000+ lbs. come with aluminum wheels. We sell both steel and aluminum adapters, and at the end of the day it's what makes you comfortable and works for your application.

  • What Is The Maximum Towing Capacity?

The maximum towing capacity we have tested on our adapters is 30,000 lbs. We tested this on a 2020 Ram 3500 Diesel which is rated to tow 32,000 lbs. with zero issues.

  • My Stud Got Damaged, Can I Buy Replacement Studs?

If for any reason you need to get replacement studs, we also carry them. Please look at the Lug Nuts & Spacers tab for more info.

INSTALLATION INSTRUCTIONS

  • Minimal Trimming OF Your Factory Studs Is Required.



    PRODUCT VIDEOS

    • Product Videos Will Be Updated Soon

    LUG NUTS & SPACERS

    Replacement Studs For 10x225 MM Wheel Adapters

    Thread Pitch Studs Placement Link
    14x1.5 Replacements Front or Rear Replacement Studs



    Lug Nuts To Mount The Adapters On Your Truck

    Thread Pitch Seat Style Link
    14x1.5 Conical 3 Series 32 Pc Lug Nuts



    Lug Nuts To Mount Factory Wheels On Adapters

    Thread Pitch Seat Style Link
    14x1.5 Flat Washer OEM Factory Lug Nuts



    Wheel Adapters

    Bolt Pattern Wheel Pattern Hub / Wheel Bore Link
    10x225 MM 10x225 MM 170.1 MM Wheel Adapters



    Wheel Spacers

    Bolt Pattern Wheel Pattern Hub Bore Link
    10x225 MM 10x225 MM 170.1 MM Wheel Spacers



    WARRANTY

    • Further Warranty Information Will Be Updated Soon
