Venum Wheel

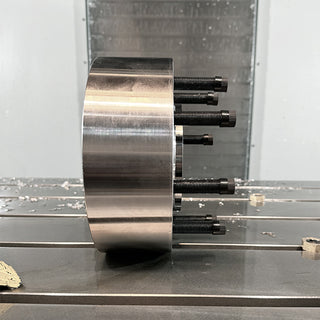

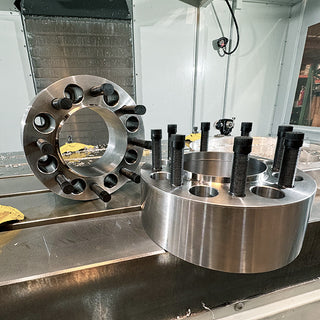

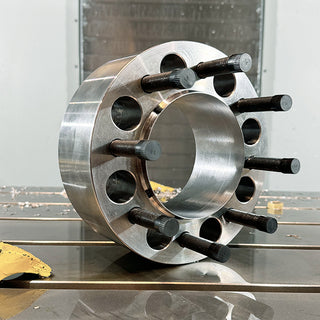

8x170 Wheel Spacers Hub Centric In Steel For 99-2024 Ford F-250 F-350

$175.00
Shipping calculated at checkout.
VW-HCA-81701142STEEL-125
Qty | Thickness
Thread Pitch | Vehicle Year
Buy now with ShopPay
Qty | Thickness
Thread Pitch | Vehicle Year

8x170 Wheel Spacers Hub Centric In Steel For 99-2024 Ford F-250 F-350

Fully Hub Centric Wheel Spacers

Made to Order: This product is made to order and may take up to 7 business days to ship.

Sold As: 1 Pc Wheel Spacer Adapter with Mounting Lug Nuts

Complete Set: If you need a complete set, select 4 under quantity.

Steel vs Aluminum: Steel is definitely stronger than aluminum, but it is also heavier. Ultimately, the choice depends on the customer's preference.

Features

  • Made Out Of 1018 Steel Cold Rolled Bars
  • Compatible with both factory and aftermarket wheels.
  • Hub/Wheel Centric design ensures no vibration at high speeds.
  • Enhances vehicle handling characteristics.
  • Provides an aggressive stance, improving vehicle appearance.
  • Specifically designed for extreme duty vehicles and safe for towing.
  • Includes all necessary mounting hardware.
  • Comes with a limited lifetime warranty.
  • Made in Lynwood, California, USA

Specifications

  • Vehicle Bolt Pattern: 8x170 MM
  • Vehicle Hub Bore: 125 MM
  • Wheel Bolt Pattern: 8x170 MM
  • Wheel Bore: 125 MM
  • Thread Pitch: 14x1.5
  • Thickness: 1" - 5"
  • Lip Thickness: 0.38"
  • Material: 1018 Steel
  • Hardware: Grade 8
  • Finish: Raw Steel
  • Torque Specs: Factory specs recommended

Vehicle Compatibility

Year Make Model Thread Pitch
1999-2002 Ford F-250 14x2
1999-2002 Ford F-350 14x2
2003-2016 Ford F-250 14x1.5
2003-2016 Ford F-350 SRW 14x1.5
2017-2022 Ford F-250 14x1.5
2017-2022 Ford F-350 SRW 14x1.5
2023-2024 Ford F-250 14x1.5
2023-2024 Ford F-350 SRW 14x1.5

Frequently Asked Questions

What is the maximum towing capacity?

Our wheel spacers and adapters will not limit your vehicle's towing performance or capacity. When installed correctly, you will not experience any issues.

Installation Instructions

  • It is very important that your studs do not extend past the face of the wheel spacer/adapter. If they do, you will need to trim them down.
  • Minimal trimming of your factory studs is required for adapters 1.5" or smaller.
  • Torque Specifications: Use factory torque specifications to mount the wheel spacer adapter and your wheels.
  • It is recommended to use blue or red Loctite on the vehicle stud side.
  • We recommend coating it with protective paint to prevent rust.
