8x170 To 8x200 Wheel Adapters Hub Centric Billet Dually Conversion
Pickup available at Venum Wheel
Usually ready in 5+ days

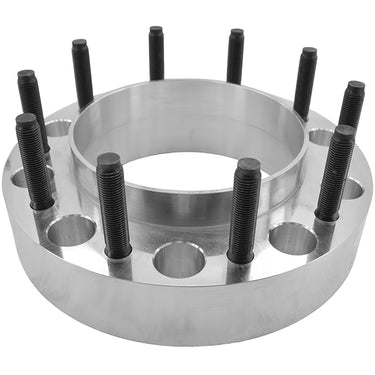

8x170 To 8x200 Wheel Adapters Hub Centric Billet Dually Conversion
** This Product Is Made To Order, May Take Up To 7 Business Days To Ship **
(If You Need A Complete Set, Select 4 Under Quantity)
Made Out of USA Grade 6061 T-6 Aluminum Billet Bars.
Fully Hub Centric.
Installation Hardware Included.
Looking For A Custom Size Or Thickness? Give Us A Call ( 310 ) 763-1437
Turn Around Time For Custom Orders is 1-2 Weeks
FEATURES
- These 8x170 MM To 8x200 MM Wheel Adapters Will Work With Dually Wheels
- Hub/Wheel Centric: Will Not Vibrate At High Speeds
- Improve Vehicles Handling Characteristics
- Improve Incorrect Wheel Offsets
- Enhance Vehicle Appearance; Aggressive Stance
- Made Out of 6061 T-6 Aluminum Billet Bars
- Specifically Design For Extreme Duty Vehicles, Towing Safe
- Mounting Hardware Included
- Limited Lifetime Warranty
SPECIFICATIONS
- Vehicle Bolt Pattern: 8x170 MM
- Vehicle Hub Bore: 125 MM
- Wheel Bolt Pattern: 8x200 MM
- Wheel Bore: 141 MM or 142 MM
- Thread Pitch: 14x1.5
- Thickness: 1.5" - 2"
- Material : Billet Aluminum 6061 T-6
- Hardware: 10.9 Steel
- Finish: Raw / Black Finish - Depends on Material Availability
- Torque Specs: Factory Specs Recommended
- Rear Adapters Come With A Longer Lip To Accommodate Both Wheels
VEHICLE COMPATIBILTY
| Year |
Make |
Model | Thread Pitch |
| 1999-2002 |
Ford |
F-250 |
14x2 |
| 1999-2002 | Ford | F-350 SRW | 14x2 |
| 2003-2004 | Ford | F-350 Dually | 14x2 |
| 2005-2021 | Ford | F-250 | 14x1.5 |
| 2005-2021 | Ford | F-350 SRW | 14x1.5 |
FREQUENTLY ASKED QUESTIONS
- What Is The Maximum Towing Capacity?
The maximum towing capacity we have tested on our adapters is 28,000 lbs. We tested this on a 2020 Ram 3500 which is rated to tow 33,000 lbs. with zero issues.
- My Stud Got Damaged, Can I Buy Replacement Studs?
If for any reason you need to get replacement studs, we also carry them. Please look at the Lug Nuts & Spacers tab for more info.
INSTALLATION INSTRUCTIONS
- Minimal Trimming of Your Factory Studs Is Required For Adapters 1.5" & Smaller
- Detailed Installation Instructions Will Be Uploaded.
PRODUCT VIDEOS
- Product Videos Will Be Updated Soon
LUG NUTS & SPACERS
Factory Style Lug Nuts
| Thread Pitch | Seat | Style | Link |
| 14x1.5 |
Flat |
OEM Style | Lug Nuts |
Wheel Spacers
| Bolt Pattern | Wheel Pattern | Hub Bore | Link |
| 8x200 MM |
8x200 MM |
142 MM | Wheel Spacers |
WARRANTY
- Further Warranty Information Will Be Updated Soon
