5x120 To 6x5.5 Wheel Adapters Hub Centric Conversion 5 To 6 Lug

5-Lug to 6-Lug Conversion

Made to Order: This product is made to order and may take up to 7 business days to ship.

Sold As: A Single Wheel Adapter + Hardware (For 1 Wheel)

These 2-piece component wheel adapters allow you to safely convert your vehicle's bolt pattern from 5x120 MM to 6x5.5"

We build some of the highest-quality wheel adapters in the industry, engineered with one priority in mind: safety. Unlike typical one-size-fits-all wheel spacers and adapters sold online, our wheel adapters are vehicle-specific and truly hub-centric, providing proper alignment and fitment.

Made in the USA

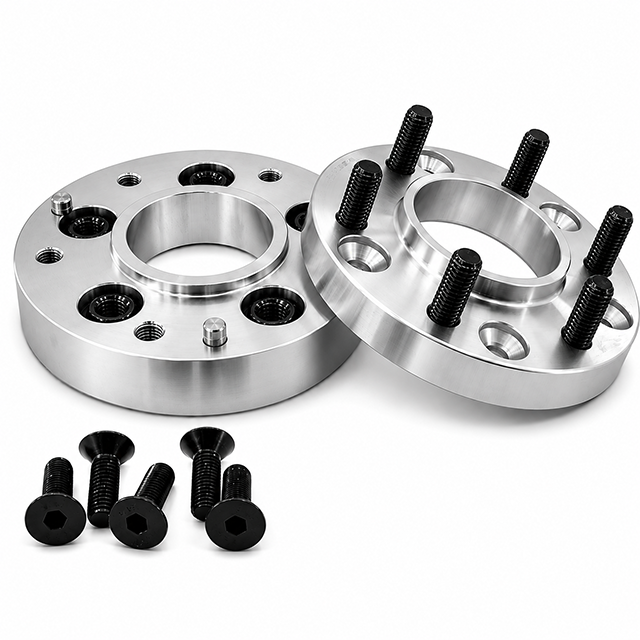

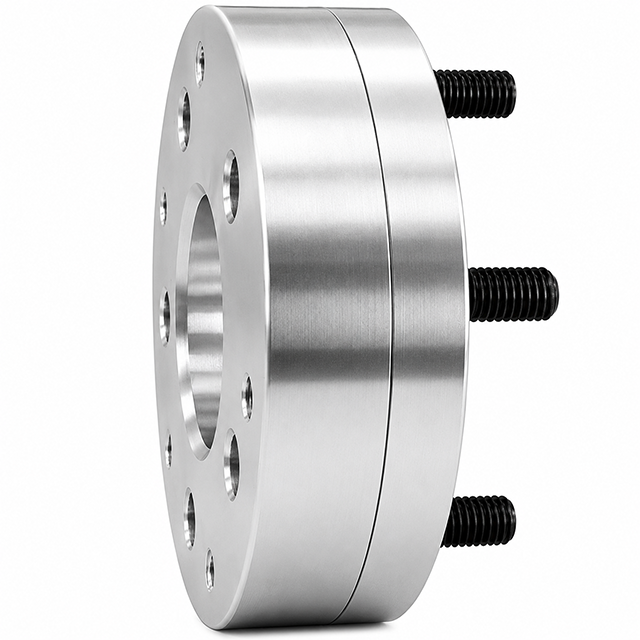

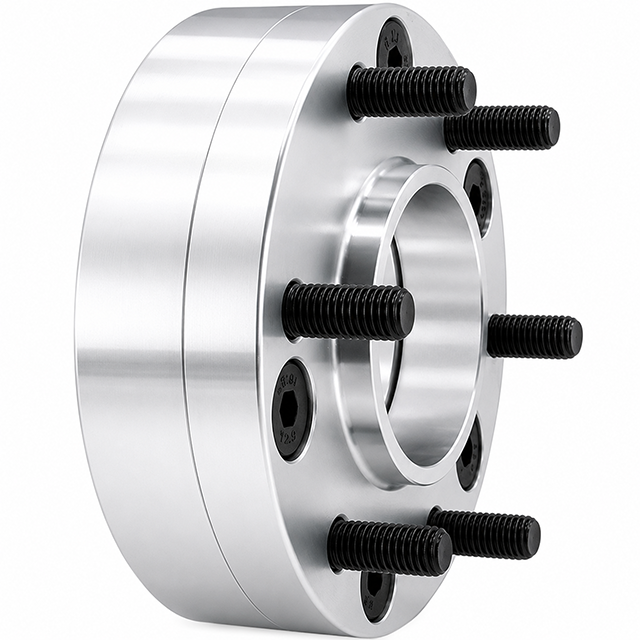

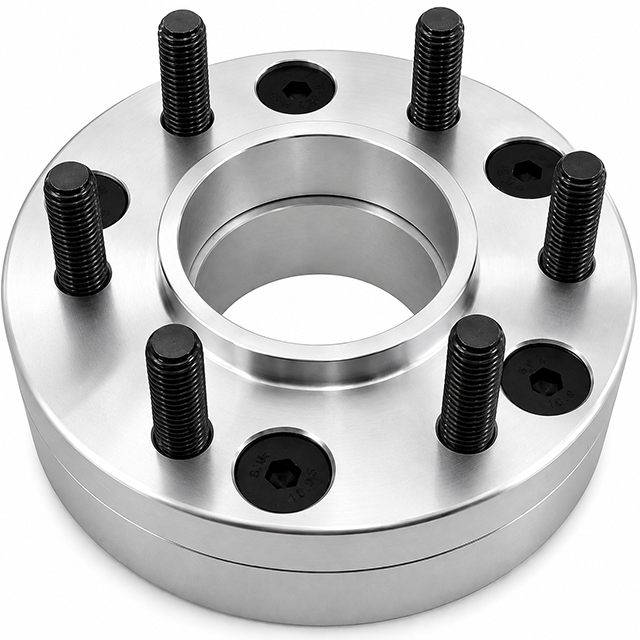

Construction

Our wheel adapters feature a true 2-piece hub-centric design, engineered for precise fitment, proper alignment, and load distribution.

Bottom Piece Attachment: The bottom piece of the adapter mounts directly to the vehicle hub where the original wheel normally attaches.
Top Piece Attachment: The top piece mounts to the bottom adapter plate and provides the new 5-lug wheel bolt pattern.
Securing Mechanism: The second plate is secured to the bottom plate using countersunk Allen bolts. The countersunk design allows the bolt heads to sit flush or below the mounting surface to help prevent wheel interference.
Dowel Pins: Dowel pins are used along with the countersunk bolts to help maintain proper alignment and stability between both adapter plates.
Thread Locker: Thread locker is recommended on the mounting hardware to help prevent loosening caused by vibration and normal driving conditions.

Features

Compatibility: Designed to work with compatible factory and aftermarket wheels.
Hub & Wheel Centric: Designed with hub-centric and wheel-centric locating surfaces for a precise fit, proper alignment, and improved stability.
Hardware Included: Includes pressed-in wheel studs, lug nuts, countersunk hardware, and required mounting hardware.

Thickness

1.5" Adapter: 0.75" Bottom Base Plate + 0.75" Top Plate
2" Adapter: 1.25" Bottom Base Plate + 0.75" Top Plate
2.5" Adapter: 1.75" Bottom Base Plate + 0.75" Top Plate
3" Adapter: 2.25" Bottom Base Plate + 0.75" Top Plate

We can custom-make any 2-piece wheel adapter you need.

Specifications

Vehicle Bolt Pattern: 5x120 MM
Vehicle Hub Bore: 66.9 MM | 72.56 MM
Wheel Bolt Pattern: 6x5.5"
Wheel Bore Options: 77.8 MM | 78.1 MM | 93.1 MM | 95 MM | 100.3 MM | 106 MM | 108 MM
Thickness Options: 1.5" - 3"
Thread Pitch: M14x1.5
Stud Length: 1.25"
Finish: Raw Aluminum
Material: 6061-T6 Billet Aluminum
Hardware Grade: 10.9 Grade Steel

Vehicle Compatibility

Year	Make	Model	Bolt Pattern	Hub Bore	Thread Pitch
2010–2024	Chevrolet	Camaro	5x120 MM	66.9 MM	M14x1.5
2010–2024	Chevrolet	Camaro SS	5x120 MM	66.9 MM	M14x1.5
2012–2024	Chevrolet	Camaro ZL1	5x120 MM	66.9 MM	M14x1.5
2014–2015	Chevrolet	Camaro Z/28	5x120 MM	66.9 MM	M14x1.5
Select Years	Cadillac	CTS / CTS-V	5x120 MM	66.9 MM	M14x1.5
2020+	Cadillac	CT5 / CT5-V	5x120 MM	66.9 MM	M14x1.5
2022+	Cadillac	CT5-V Blackwing	5x120 MM	66.9 MM	M14x1.5
Select Years	Cadillac	CT6 / CT6-V	5x120 MM	66.9 MM	M14x1.5
Select Years	Cadillac	XTS	5x120 MM	66.9 MM	M14x1.5
Select Years	Buick	Regal / Regal GS	5x120 MM	66.9 MM	M14x1.5
Select Years	Buick	LaCrosse	5x120 MM	66.9 MM	M14x1.5
2005–2009	Land Rover	LR3 / Discovery 3	5x120 MM	72.6 MM	M14x1.5
2010–2016	Land Rover	LR4 / Discovery 4	5x120 MM	72.6 MM	M14x1.5
2017+	Land Rover	Discovery 5	5x120 MM	72.6 MM	M14x1.5
2020+	Land Rover	Defender L663	5x120 MM	72.6 MM	M14x1.5
2003–2012	Range Rover	Range Rover L322	5x120 MM	72.6 MM	M14x1.5
2013–2022	Range Rover	Range Rover L405	5x120 MM	72.6 MM	M14x1.5
2022+	Range Rover	Range Rover L460	5x120 MM	72.6 MM	M14x1.5
2006–2013	Range Rover	Range Rover Sport L320	5x120 MM	72.6 MM	M14x1.5
2014–2022	Range Rover	Range Rover Sport L494	5x120 MM	72.6 MM	M14x1.5
2023+	Range Rover	Range Rover Sport L461	5x120 MM	72.6 MM	M14x1.5

Installation Notes

Proper installation is critical for safety. These adapters must be torqued to the vehicle manufacturer's specifications and installed using thread locker where required. If you are not experienced with wheel adapters, professional installation is highly recommended.

IMPORTANT – Vehicle Stud Trimming Required: When installing the 1.5" or 2" adapters, the factory vehicle studs may need to be shortened. The vehicle studs must not extend past the surface of the first (bottom) adapter plate.

1.5" Adapter: The first (bottom) plate is approximately 0.75" thick. The vehicle studs must not extend more than approximately 0.70" from the mounting surface.
2" Adapter: The first (bottom) plate is approximately 1.25" thick. The vehicle studs must not extend more than approximately 1.20" from the mounting surface.

Always verify stud clearance before installing the second plate. If any vehicle stud extends past the first plate, it must be properly shortened so the second plate can sit completely flush against the first plate.

Do not install or operate the vehicle if the second plate does not sit completely flush against the first plate. Improper clearance can prevent the two adapter plates from seating correctly and may cause the mounting hardware to loosen, which can result in wheel separation, loss of vehicle control, serious injury, or property damage.

Built for Safety. Made in the USA.
