1 4

Venum Wheel

5x120 MM BMW Wheel Spacers Hub Centric 74.1 MM Bore Spacers Only

$33.00
Shipping calculated at checkout.
VW-HCS-51203NL-74.1
Qty | Thickness
Qty | Thickness

Estimated Shipping Widget will be displayed here!

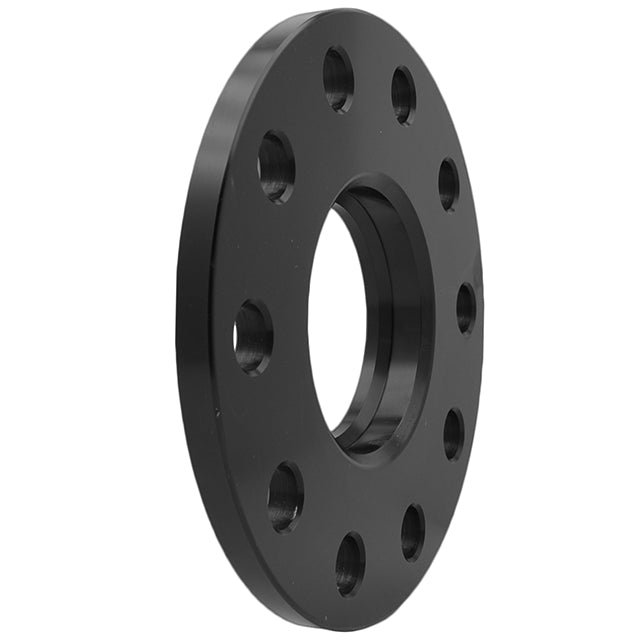

5x120 MM BMW Wheel Spacers Hub Centric 74.1 MM Bore Spacers Only

Wheel spacers sold individually, lug bolt kits also available.

Extended lug bolts are required for proper installation.

Description:

We offer multiple thicknesses of BMW wheel spacers, providing an ideal solution for various fitment and aesthetic concerns. These spacers, featuring a 5x120 mm bolt pattern and a 74.1 mm hub and wheel bore, effectively correct wheel offset problems, ensuring a flush fitment instead of a "tucked under" look. By creating the necessary clearance, they prevent wheels from interfering with components such as suspension and brakes. Additionally, by broadening the track width, these BMW wheel spacers contribute to improved handling and stability.

Made from 6061-T6 aircraft-grade aluminum, Venum Wheel spacers are designed and precision CNC machined in-house to the highest standards. We carefully assess the tolerances of the OEM hub flange and wheel bore dimensions to ensure an exact fit with minimal clearance between the wheel and hub mating surfaces, providing a smooth, vibration-free driving experience.

If a selected size has two asterisks (**) at the end, it indicates that the size is custom-made and not a standard size. As a result, the price for this size is slightly higher.

Features:

  • Compatibility: These wheel spacers work seamlessly with both factory and aftermarket wheels.
  • Hub/Wheel Centric Design: Ensures no vibrations at high speeds.
  • Improved Handling: Enhances your vehicle's handling characteristics.
  • Offset Correction: Corrects improper wheel offsets.
  • Aggressive Stance: Enhances the vehicle's appearance with a more aggressive stance.
  • Specialized Use: Specifically designed for daily driving, drag racing and track days.
  • Limited Lifetime Warranty: Backed by a limited lifetime warranty for peace of mind.

Specifications:

  • Bolt Pattern: 5x120 mm
  • Hub Bore: 74.1 mm
  • Wheel Pattern: 5x120 mm
  • Wheel Bore: 74.1 mm
  • Thickness: Available in 10 mm to 30 mm (custom sizes are available)
  • Color: Raw aluminum
  • Material: 6061 T-6 aluminum
BMW Model Model Variant Engine
E39 525i M54 2.5L
E39 528i M52 2.8L
E39 530i M54 3.0L
E39 540i M62 4.4L
E39 M5 S62 5.0L
E70 X5 M57 3.0L
E70 X5 N52 3.0L
E70 X5 N55 3.0L
E70 X5 N62 4.8L
E70 X5 S63 4.4L
E70 X5 xDrive30i N52 3.0L
E70 X5 xDrive35d M57 3.0L
E70 X5 xDrive35i N55 3.0L
E70 X5 xDrive48i N62 4.8L
E70 X5 xDrive50i N63 4.4L
E71 X6 S63 4.4L
E71 X6 35iX N54 3.0L
E71 X6 50iX N63 4.4L
E71 X6 50iX S63 4.4L
E71 X6 Active Hybrid N63 4.4L
E71 X6 xDrive35i N54 3.0L
E71 X6 xDrive35i N55 3.0L
E71 X6 xDrive50i N63 4.4L
F15 X5 sDrive35i N55 3.0L
F15 X5 xDrive35d N57 3.0L
F15 X5 xDrive35i N55 3.0L
F15 X5 xDrive40e N20 2.0L
F15 X5 xDrive50i N63 4.4L
F16 X6 sDrive35i N55 3.0L
F16 X6 xDrive35i N55 3.0L
F16 X6 xDrive50i N63 4.4L

```
