5x108 MM To 6x5.5" Wheel Adapters Hub Centric Conversion 5 To 6 Lug

5-Lug to 6-Lug Conversion

Made to Order: This product is made to order and may take up to 7 business days to ship.

Sold As: A Single Wheel Adapter + Hardware (For 1 Wheel)

These 2-piece component wheel adapters allow you to safely convert your vehicle's bolt pattern from 5x108 MM to 6x5.5"

We build some of the highest-quality wheel adapters in the industry, engineered with one priority in mind: safety. Unlike typical one-size-fits-all wheel spacers and adapters sold online, our wheel adapters are vehicle-specific and truly hub-centric, providing proper alignment and fitment.

Made in the USA

Construction

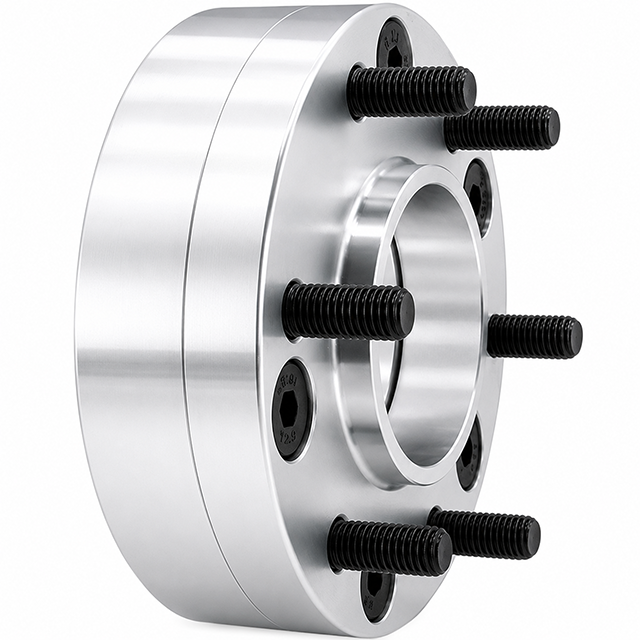

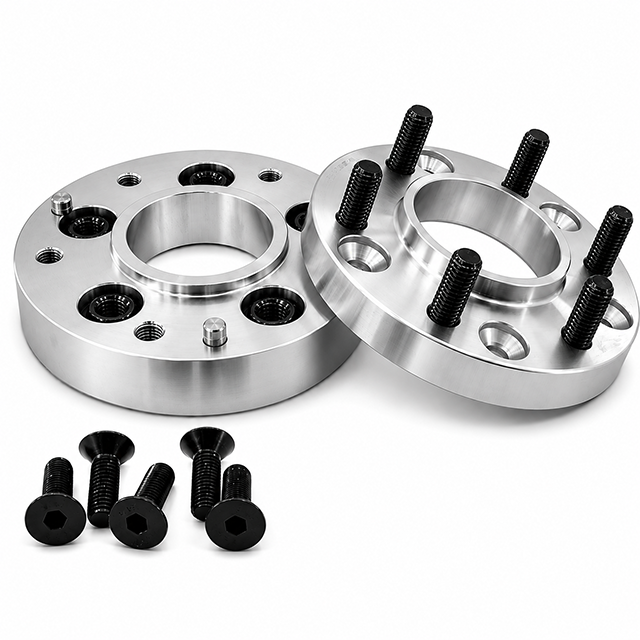

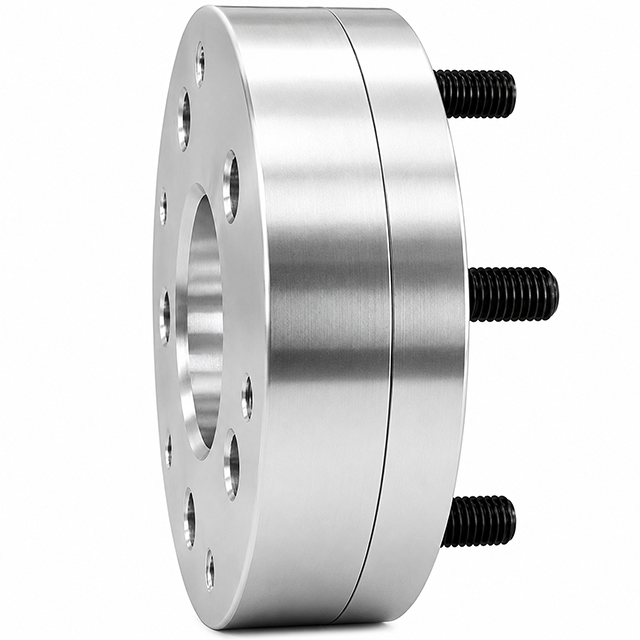

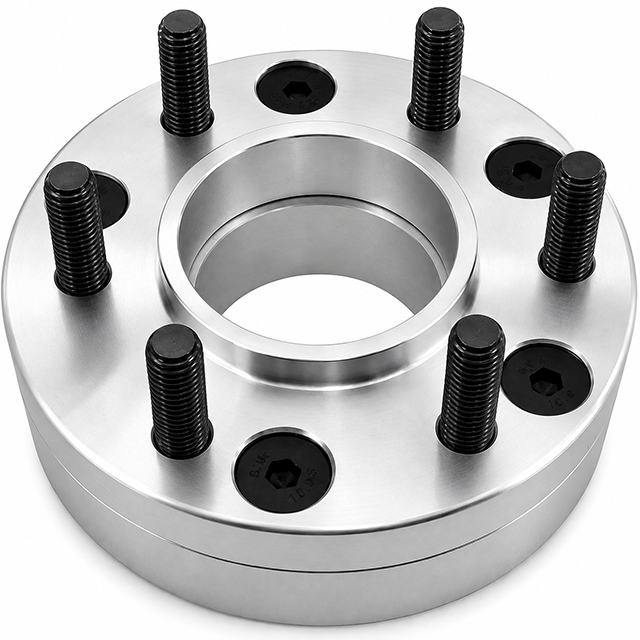

Our wheel adapters feature a true 2-piece hub-centric design, engineered for precise fitment, proper alignment, and load distribution.

Bottom Piece Attachment: The bottom piece of the adapter mounts directly to the vehicle hub where the original wheel normally attaches.
Top Piece Attachment: The top piece mounts to the bottom adapter plate and provides the new 5-lug wheel bolt pattern.
Securing Mechanism: The second plate is secured to the bottom plate using countersunk Allen bolts. The countersunk design allows the bolt heads to sit flush or below the mounting surface to help prevent wheel interference.
Dowel Pins: Dowel pins are used along with the countersunk bolts to help maintain proper alignment and stability between both adapter plates.
Thread Locker: Thread locker is recommended on the mounting hardware to help prevent loosening caused by vibration and normal driving conditions.

Features

Compatibility: Designed to work with compatible factory and aftermarket wheels.
Hub & Wheel Centric: Designed with hub-centric and wheel-centric locating surfaces for a precise fit, proper alignment, and improved stability.
Hardware Included: Includes pressed-in wheel studs, lug nuts, countersunk hardware, and required mounting hardware.

Thickness

1.5" Adapter: 0.75" Bottom Base Plate + 0.75" Top Plate
2" Adapter: 1.25" Bottom Base Plate + 0.75" Top Plate
2.5" Adapter: 1.75" Bottom Base Plate + 0.75" Top Plate
3" Adapter: 2.25" Bottom Base Plate + 0.75" Top Plate

We can custom-make any 2-piece wheel adapter you need.

Specifications

Vehicle Bolt Pattern: 5x108 MM
Vehicle Hub Bore: 63.4 MM
Wheel Bolt Pattern: 6x5.5"
Wheel Bore Options: 77.8 MM | 78.1 MM | 93.1 MM | 95 MM | 100.3 MM | 106 MM | 108 MM
Thickness Options: 1.5" - 3"
Thread Pitch: M14x1.5
Stud Length: 1.25"
Finish: Raw Aluminum
Material: 6061-T6 Billet Aluminum
Hardware Grade: 10.9 Grade Steel

Vehicle Compatibility

Year	Make	Model	Bolt Pattern	Hub Bore
2021-2026	Ford	Bronco Sport	5x108 MM	63.4 MM
2003–2019	Ford	C-Max	5x108 MM	63.4 MM
2015–2024	Ford	Edge	5x108 MM	63.4 MM
2013+	Ford	Escape	5x108 MM	63.4 MM
2005+ (5-Lug Applications)	Ford	Focus	5x108 MM	63.4 MM
2005+	Ford	Focus ST	5x108 MM	63.4 MM
2009–2011 / 2016–2018	Ford	Focus RS	5x108 MM	63.4 MM
2013–2020	Ford	Fusion	5x108 MM	63.4 MM
2022+	Ford	Maverick	5x108 MM	63.4 MM
2021+	Ford	Mustang Mach-E	5x108 MM	63.4 MM
2020+	Lincoln	Corsair	5x108 MM	63.4 MM
2000–2006	Lincoln	LS	5x108 MM	63.4 MM
1993–1998	Lincoln	Mark VIII	5x108 MM	63.4 MM
2015–2019	Lincoln	MKC	5x108 MM	63.4 MM
1999–2008	Jaguar	S-Type	5x108 MM	63.4 MM
2001–2009	Jaguar	X-Type	5x108 MM	63.4 MM
2015+	Jaguar	XE	5x108 MM	63.4 MM
2008+	Jaguar	XF	5x108 MM	63.4 MM
2003+	Jaguar	XJ	5x108 MM	63.4 MM
2006–2015	Jaguar	XK	5x108 MM	63.4 MM
2013+	Jaguar	F-Type	5x108 MM	63.4 MM
2017-2026	Jaguar	F-Pace	5x108 MM	63.4 MM
2019+	Jaguar	I-Pace	5x108 MM	63.4 MM
2007–2015	Land Rover	Freelander 2 / LR2	5x108 MM	63.4 MM
2012-2026	Land Rover	Range Rover Evoque	5x108 MM	63.4 MM
2015-2026	Land Rover	Discovery Sport	5x108 MM	63.4 MM

Installation Notes

Proper installation is critical for safety. These adapters must be torqued to the vehicle manufacturer's specifications and installed using thread locker where required. If you are not experienced with wheel adapters, professional installation is highly recommended.

IMPORTANT – Vehicle Stud Trimming Required: When installing the 1.5" or 2" adapters, the factory vehicle studs may need to be shortened. The vehicle studs must not extend past the surface of the first (bottom) adapter plate.

1.5" Adapter: The first (bottom) plate is approximately 0.75" thick. The vehicle studs must not extend more than approximately 0.70" from the mounting surface.
2" Adapter: The first (bottom) plate is approximately 1.25" thick. The vehicle studs must not extend more than approximately 1.20" from the mounting surface.

Always verify stud clearance before installing the second plate. If any vehicle stud extends past the first plate, it must be properly shortened so the second plate can sit completely flush against the first plate.

Do not install or operate the vehicle if the second plate does not sit completely flush against the first plate. Improper clearance can prevent the two adapter plates from seating correctly and may cause the mounting hardware to loosen, which can result in wheel separation, loss of vehicle control, serious injury, or property damage.

Built for Safety. Made in the USA.
