Description

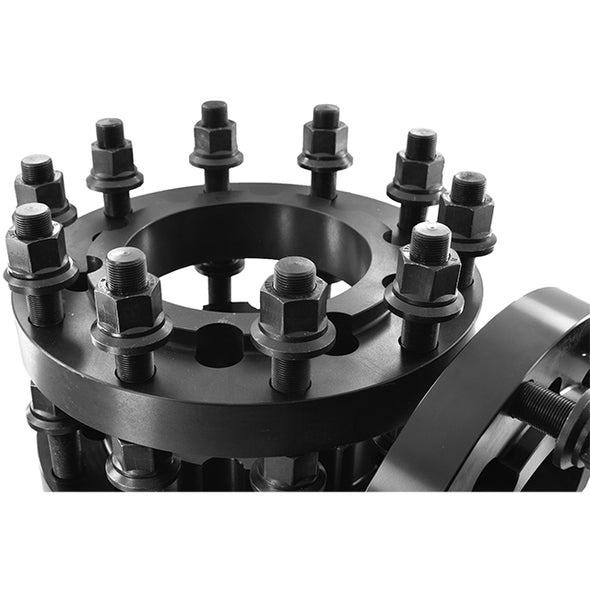

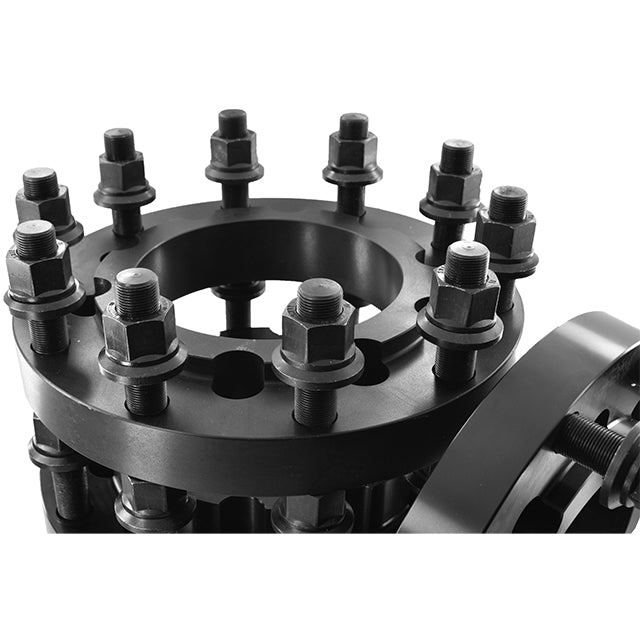

2019+ Ram 8x200 To 10x285.75 8 To 10 Lug Wheel Adapters Billet Aluminum
** This Product Is Made To Order, May Take Up To 5 Business Days To Ship **

Made Out of USA Grade 6061 T-6 Aluminum Billet Bars.

These Adapters Will Change Your Truck's 8x200 MM Bolt Pattern To 10x285.75 MM ( Big Rig Bolt Pattern ).

Fully Hub Centric.

Installation Hardware Included.

1.5" Thick Is The Most Common Thickness For This Conversion.

Looking For A Custom Size Or Thickness? Give Us A Call ( 310 ) 763-1437

FEATURES
  • Made Out of 6061 T-6 Aluminum Billet Bars
  • Allows You To Put 22.5", 24.5" & Other 10 Lug Wheels On Your Truck
  • These Adapters Will Work With Alcoa & Aftermarket Wheels
  • Hub/Wheel Centric: Will Not Vibrate At High Speeds
  • Improve Vehicles Handling Characteristics
  • Enhance Vehicle Appearance; Aggressive Stance
  • Specifically Design For Extreme Duty Vehicles, Towing Safe
  • We Have Towed 30,000 LBS With Our Adapters
  • Mounting Hardware Included
SPECIFICATIONS
  • Vehicle Bolt Pattern: 8x200 MM
  • Vehicle Hub Bore: 141 MM
  • Wheel Bolt Pattern: 10x285.75 MM
  • Wheel Bore: 220.1 MM
  • Thread Pitch: 22x1.5
  • Thickness: 1.5"
  • Front Wheel Lip: 0.50"
  • Rear Wheel Lip: 1.5"
  • Material : Billet Aluminum 6061 T-6
  • Hardware: 10.9 Grade
  • Finish: Raw / Black Depends on Material Availability
  • Torque Specs: Factory Specs Recommended

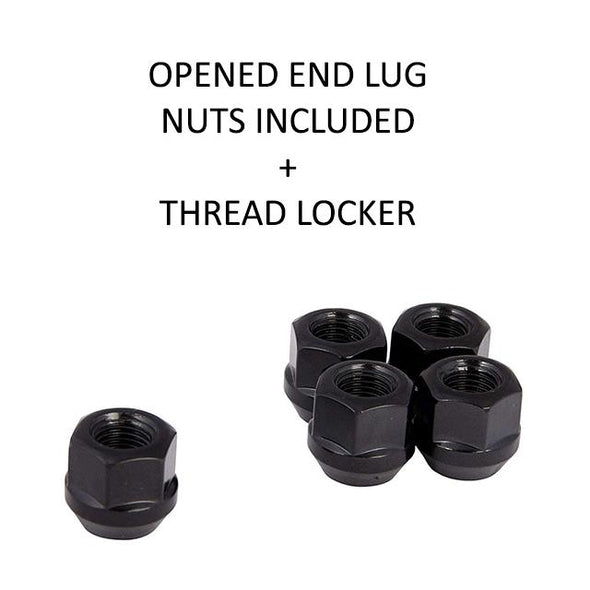

  • Pressed In Studs & Lug Nuts Included
VEHICLE COMPATIBILTY
  • New Wheels Being Installed Must Be 10x285.75 MM.
Year Make
Model Bolt Pattern
2019-2022
Ram
3500 Dually
8x200 MM

FREQUENTLY ASKED QUESTIONS
  • What Is The Difference Between Aluminum And Steel?

The main difference between aluminum and steel is the weight difference which affects the rotating mass. Tensile strength for our billet 6061 t-6 aluminum is 45,000 PSI and for steel is 53,700 PSI. Our Billet Adapters are 2X thicker than steel, thus making them almost double on combined PSI. A 1.5" Aluminum Adapter weighs about 20 LBS, and a 1.5" Steel Adapter weighs close to 100 lbs. This extra rotating mass is unnecessary. Below is a side-by-side comparison of the 1.5" Aluminum and 0.75" Steel, which are the standard sizes we sell. The wheels you are going to be installing will most likely be made out of aluminum. In fact, Big Rigs that carry 70,000+ lbs. come with aluminum wheels. We sell both steel and aluminum adapters, and at the end of the day it's what makes you comfortable and works for your application.

  • Why Is The 1.5" Thick Adapters The Most Standard Size In Aluminum?

This size became popular because it cleared tires that are 13.5" wide up front and will give you a better stance on your truck. We can also make them as narrow as 1 inch for this specific size.

  • What Is The Maximum Towing Capacity?

The maximum towing capacity we have tested on our adapters is 30,000 lbs. We tested this on a 2020 Ram 3500 Diesel which is rated to tow 32,000 lbs. with zero issues.

  • My Stud Got Damaged, Can I Buy Replacement Studs?

If for any reason you need to get replacement studs, we also carry them. Please look at the Lug Nuts & Spacers tab for more info.

INSTALLATION INSTRUCTIONS
  • Minimal Trimming of Your Factory Studs Is Required.
  • Detailed Installation Instructions Will Be Uploaded.

    PRODUCT VIDEOS
    • Product Videos Will Be Updated Soon
    LUG NUTS & SPACERS

    Lug Nuts To Mount The Adapters On Your Truck

    Years Model Thread Pitch Link
    2019-2022
    Ram 3500 Dually
    14x1.5 32 Pc Lug Nuts

    Replacement Studs For 10x285.75 MM Wheel Adapters ( Confirm Fitment )

    Thread Pitch Studs Placement Link
    22x1.5
    Replacement Front Short Studs
    22x1.5 Replacement Rear Long Studs

    Lug Nuts To Mount Wheels On Adapters

    Thread Pitch
    Seat
    Style
    Link
    22x1.5
    Flat Washer Skirt Skirt Lug Nuts

    Wheel Adapters

    Bolt Pattern Wheel Pattern Hub / Wheel Bore Link
    10x285.75 MM
    10x285.75 MM
    220.1 MM Wheel Adapters

    Wheel Spacers

    Bolt Pattern Wheel Pattern Hub Bore Link
    10x285.75 MM
    10x285.75 MM
    220.1 MM Wheel Spacers

    WARRANTY
    • Further Warranty Information Will Be Updated Soon
