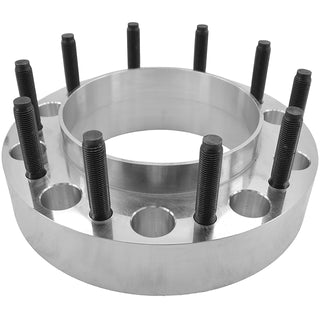

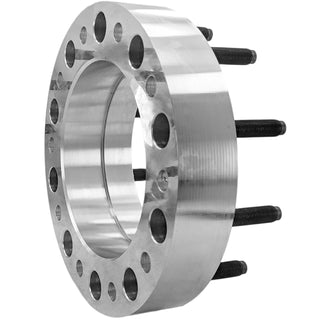

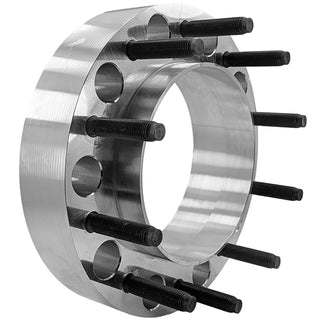

      10x225 MM Wheel Adapters Hub Centric 170.1 MM Bore In Between Dually Wheels

      ** This Product Is Made To Order, May Take Up To 5 Business Days To Ship **

      Made Out of USA Grade 6061 T-6 Aluminum Billet Bars.

      Fully Hub Centric.

      If Selecting "Rear Wheels (Behind 1st Wheel" Under Placement, You Will Receive An Adapter With A 1" Lip & Longer Studs To Accommodate For Dual Wheels & Direct Bolt On Wheel Issues, This Can Also Be Used In The Front.

      Installation Hardware Included.

      Looking For A Custom Size Or Thickness? Give Us A Call ( 310 ) 763-1437

      FEATURES
      • These 10x225 MM Wheel Adapters Will Work With Factory & Aftermarket Wheels
      • Hub/Wheel Centric: Will Not Vibrate At High Speeds
      • Improve Vehicles Handling Characteristics
      • Improve Incorrect Wheel Offsets
      • Enhance Vehicle Appearance; Aggressive Stance
      • Made Out of 6061 T-6 Aluminum Billet Bars
      • Specifically Design For Extreme Duty Vehicles, Towing Safe
      • Mounting Hardware Included
      • Limited Lifetime Warranty
      SPECIFICATIONS
      • Vehicle Bolt Pattern: 10x225 MM
      • Vehicle Hub Bore: 170.1 MM
      • Wheel Bolt Pattern: 10x225 MM
      • Wheel Bore: 170.1 MM
      • Thread Pitch: 14x1.5
      • Thickness: 1" - 4"
      • Lip Thickness : 0.5" (Standard) | 1" For Dual Wheels
      • Material : Billet Aluminum 6061 T-6
      • Hardware: 10.9 Steel
      • Finish: Raw / Black Finish
      • Torque Specs: Factory Specs Recommended
      VEHICLE COMPATIBILTY
      • Select Wheel Adapter Placement Above.
      • Will Work On Front Wheels, In Between Rear Wheels, Or Behind The Inner Rear Wheel.
      Year Make
      Model Thread Pitch
      2005-2021
      Ford
      F-450
      14x1.5
      2005-2021
      Ford
      F-550
      14x1.5
      2005-2022
      Ram
      4500
      14x1.5
      2005-2022
      Ram
      5500
      14x1.5

      FREQUENTLY ASKED QUESTIONS
      • What Is The Maximum Towing Capacity?

      The maximum towing capacity we have tested on our adapters is 28,000 lbs. We tested this on a 2020 Ram 3500 which is rated to tow 33,000 lbs. with zero issues.

      • My Stud Got Damaged, Can I Buy Replacement Studs?

      If for any reason you need to get replacement studs, we also carry them. Please look at the Lug Nuts & Spacers tab for more info.

      INSTALLATION INSTRUCTIONS
      • Minimal Trimming of Your Factory Studs Is Required For Adapters 1.5" & Smaller
      • Detailed Installation Instructions Will Be Uploaded.

        PRODUCT VIDEOS
        • Product Videos Will Be Updated Soon
        LUG NUTS & SPACERS

        Factory Style Lug Nuts

        Thread Pitch Seat Style Link
        14x1.5
        Flat
        OEM Style Lug Nuts

        Wheel Spacers

        Bolt Pattern Wheel Pattern Hub Bore Link
        10x225 MM
        10x225 MM
        170.1 MM Wheel Spacers
