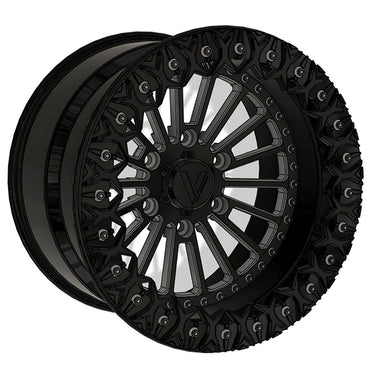

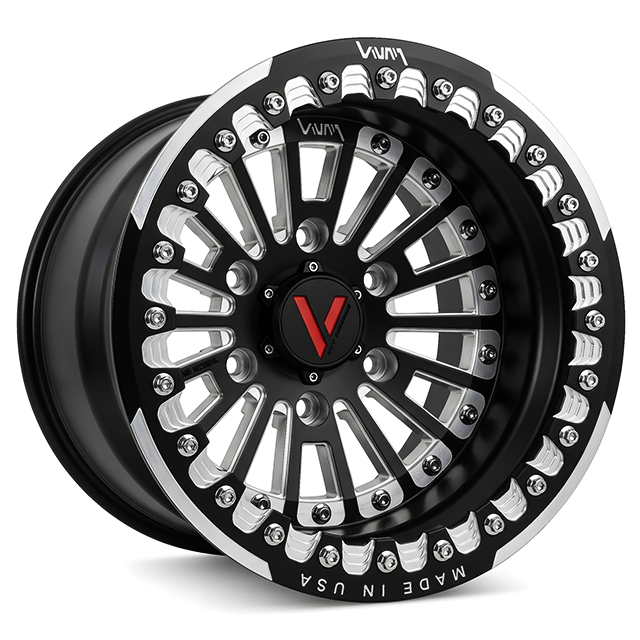

V-4 Stuffed Beadlock VNM Forged UTV Wheels - Can-Am Maverick R
V-4 Beadlock UTV Wheels, made from lightweight Forged 6061 Aluminum, are engineered to handle all terrain types—on and off-road. 100% customizable and made to order.
Fits: 2023–2025 Can-Am Maverick R (6 Lug)
Made in the USA by Venum Wheel
Features
- 2 Pc Forged Construction: Lightweight & durable 6061 forged aluminum
- Pre-Assembled: Ready for installation
- Face Profile: Choose flat or concave
- Beadlock Options: Standard spun aluminum or billet upgrade
- Beadlock Hardware: Included
- Billet Center Caps: Included
- Made in California
Specifications
- Model: V-4 Stuffed
- Sizes: 15" & 17"
- Width: Varies by selection
- Bolt Pattern: 6x5.5" (6x139.7 mm)
- Vehicle Fitment: 2023–2025 Can-Am Maverick R (6 Lug)
- Lug Seat: Conical
- Finish: Custom options available
- Valve Stems: Included
Vehicle Fitment
Years | Make | Model | Pattern | Thread |
---|---|---|---|
2023–2025 | Can-Am | Maverick R | 6x5.5" | 12x1.5 |
Offsets & Backspacing
Below are common size configurations. Contact us for custom setups.
Size | Outter | Inner | Backspace | Offset | Profile |
---|---|---|---|---|
15x7 / 17x7 | 2" + 5" | 4.75" | 19 mm | Flat |
15x8 / 17x8 | 4" + 4" | 3.75" | -19 mm | Flat |
15x10.5 / 17x10.5 | 5.5" + 5" | 4.75" | -25 mm | Flat |
15x14 / 17x14 | 8" + 6" | 5.75" | -44 mm | Flat |
17x10 | 3" + 7" | 6.75" | 31 mm | Flat |
15x7 / 17x7 | 2" + 5" | 4.25" | 6 mm | Concave |
15x8 / 17x8 | 4" + 4" | 3.25" | -31 mm | Concave |
15x10.5 / 17x10.5 | 5.5" + 5" | 4.25" | -38 mm | Concave |
15x14 / 17x14 | 8" + 6" | 5.25" | -57 mm | Concave |
17x10 | 3" + 7" | 6.25" | 19 mm | Concave |
