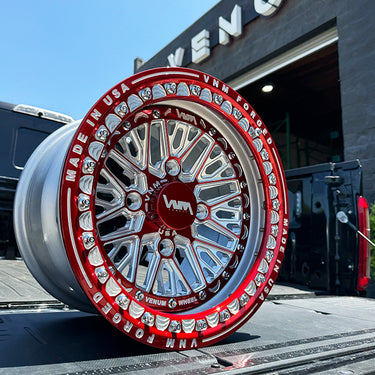

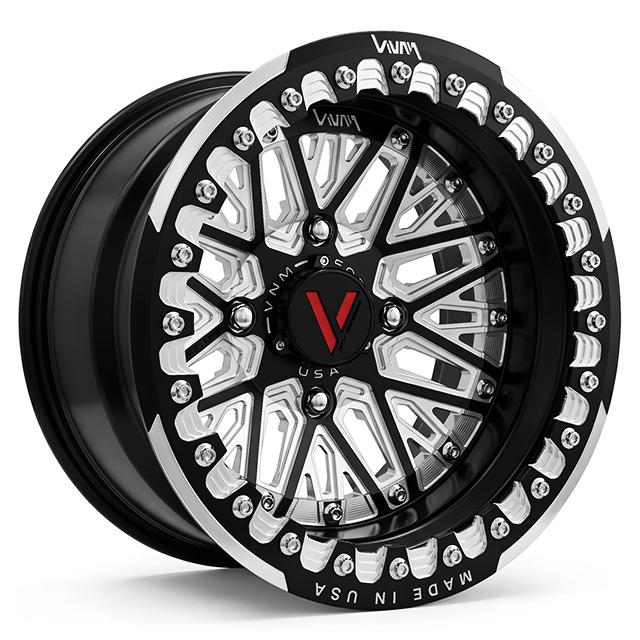

V-1 The Argo Beadlock UTV Wheels Side by Side Can Am Polaris SXS
Lightweight, 2-piece Aluminum Forged Wheels For Side by side.
Fits: Can-Am X3, Polaris RZR, Honda Talon, Yamaha YXZ & more – 4 Lug SXS UTV
Wheels Are 100% Customizable & Made To Order.
By Venum Wheel, Made in the USA
Key Features
- 2-Piece Forged Construction: Made from high-strength 6061 aluminum for durability and performance.
- Pre-Assembled: Wheels arrive pre-assembled and ready to install.
- Concave Face Profile: Offers a deep, aggressive look with a 3D inward design.
- Beadlock Options: Standard spun aluminum is included with our beadlock wheels. We also offer upgraded billet beadlock rings and our AR Billet Series beadlocks. (Billet rings are ideal for 2-tone powder coating).
- Beadlock Hardware Included
- Billet Center Caps Included
- Manufactured in California, USA
Wheel Specifications
- Model: V-1 The Argo
- Available Sizes: 15" & 17"
- Widths: Varies (Select Above)
- Bolt Patterns: 4x110mm, 4x137mm, 4x156mm
- Lug Seats: Conical (Acorn)
- Finish: Custom powder coat options available
- Valve Stems Included
Vehicle Fitment Guide
Years | Make | Model | Bolt Pattern | Thread Pitch |
---|---|---|---|
All Years | Arctic Cat | Wildcat | 4x156mm | 12x1.5 |
2017–2025 | Can-Am | Maverick X3 | 4x137mm | 12x1.5 |
All Years | Honda | Talon | 4x137mm | 12x1.5 |
2016–2025 | Polaris | RZR 1000 | 4x156mm | 12x1.5 |
2016–2019 | Yamaha | YXZ | 4x110mm | 12x1.25 |
2020–2025 | Yamaha | YXZ | 4x156mm | 12x1.25 |
Offset & Backspace Details
Size | Outer | Inner | Backspace | Offset | Profile |
---|---|---|---|---|
15x7 / 17x7 | 2" + 5" | 4.25" | 6mm | Concave |
15x8 / 17x8 | 4" + 4" | 3.25" | -31mm | Concave |
15x10.5 / 17x10.5 | 5.5" + 5" | 4.25" | -38mm | Concave |
15x14 / 17x14 | 8" + 6" | 5.25" | -57mm | Concave |
17x10 | 3" + 7" | 6.25" | 19mm | Concave |
