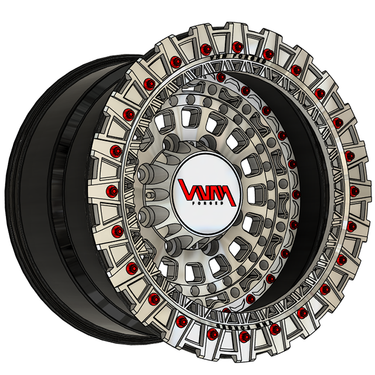

VNM Forged V-7 Beadlock Wheels Custom For 8x6.5 8x170 8x180 Vehicles
VNM Forged Wheels, designed using lightweight Forged Aluminum 6061, are engineered to perform exceptionally on various terrains, both on and off-road.
Wheels are 100% customizable & made to order.
For: 8 Lug Vehicles
By: Venum Wheel, Made in the USA
Features
- 2 Pc Forged Wheel Construction: Crafted from Forged Aluminum 6061, ensuring lightweight durability.
-
Pre-Assembled Wheels: Ready for immediate installation upon purchase.
- Face Profile Options: Concave adds a more dynamic 3D effect with an inward slope, making it more appealing.
- Beadlock Style Options: Standard is our .50" standard billet, upgrade would be our 3D .75" ThickĀ
- Beadlock Hardware Included
- Billet Floating Center Caps Included
- Manufactured in California, U.S.A.
Specifications
- Model: V-7
- Wheel Size: 17" - 24"
- Wheel Width: 9" Standard (custom sizes available)
- Bolt Pattern: 8x6.5" | 8x170 MM | 8x180 MM
- Hardware: M10x1.25
- Beadlock: 1/2-3/4" Thick
- Lug Nut Holes: Conical Seat
- Finish: Custom Options
- Comes With Valve Stems
Vehicle Fitment
| Years | Make | Model | Pattern | Thread |
|---|---|---|---|
| Any | Any | Any | Any 8 Lug |
Offsets & Backspace
| Size | Backspace | Offset | Profile |
|---|---|---|---|
| 15x9 | 17x9 | 18x9 | 20x9 | 22x9 | 24x9 | 4.5" (Standard) | -12 mm | Concave |
| 15x9 | 17x9 | 18x9 | 20x9 | 22x9 | 24x9 | 5" | 0 mm | Concave |
| 15x9 | 17x9 | 18x9 | 20x9 | 22x9 | 24x9 | 5.75" | +19 mm | Concave |
| 15x9 | 17x9 | 18x9 | 20x9 | 22x9 | 24x9 | 6" | +25 mm | Concave |
| Custom | Custom | Custom | Custom |
