5x120 BMW Wheel Spacers Hub Centric + 12x1.5 Stud Conversion For E Chasis

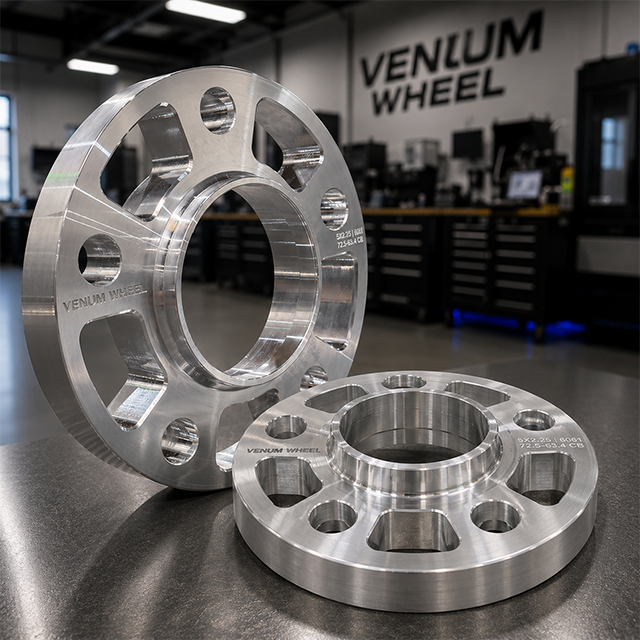

Fully Hub Centric Wheel Spacers

Made to Order: This product takes about 3-6 business days to ship

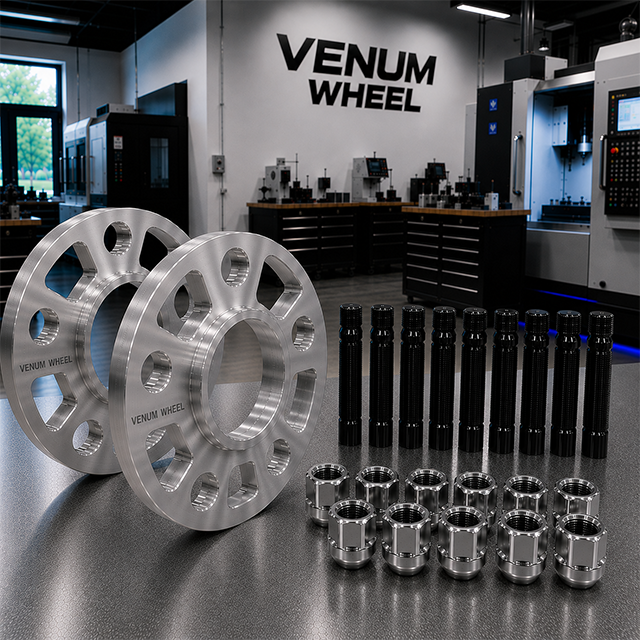

Sold As: 2 Pc wheel spacers with 10 Studs & 10 Lug Nuts

Placement: All of these can be used for the front or rear wheels,

This stud conversion wheel spacer kit spaces your wheels out while converting factory lug bolts to traditional wheel studs and lug nuts, making wheel installation easier on most European vehicles.

You may use aftermarket lug nuts with this kit as long as the thread pitch matches and the lug nut does not bottom out before fully tightening. Open-end lug nuts are recommended for best fitment, though closed-end lug nuts will also work if properly sized.

We offer multiple thicknesses of BMW wheel spacers to address fitment and appearance. Spacers correct improper offsets for a flush stance, add clearance for suspension/brake components, and widen track width for improved stability and handling.

Sizes marked with “**” are custom-made (non-standard) and priced slightly higher.

Features

• Stud Conversion: Replaces factory lug bolts with studs and lug nuts
• Compatibility: Works with factory and aftermarket wheels.
• Hub/Wheel-centric: No high-speed vibration.
• Improved handling: Wider track for better stability.
• Offset correction: Fixes tucked-in wheel fitment.
• Aggressive stance: Cleaner, wider look.
• Use cases: Daily driving, drag racing, and track days.

Specifications

(Wheel Spacers)

• Vehicle Bolt Pattern: 5x120 MM
• Vehicle Hub Bore: 72.56 MM
• Wheel Bolt Pattern: 5x120 MM
• Wheel Bore: 72.56 MM
• Thickness: 3 MM - 30 MM
• Lip Thickness: 0.38"
• Material: Billet Aluminum 6061 T-6
• Finish: Raw Aluminum

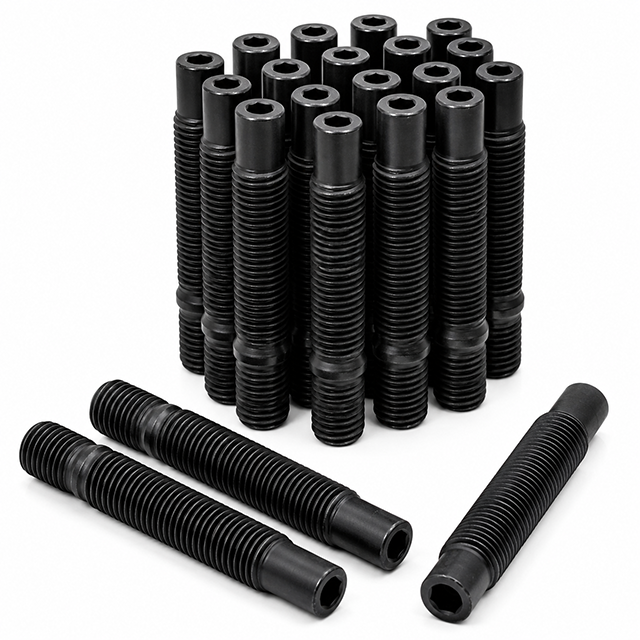

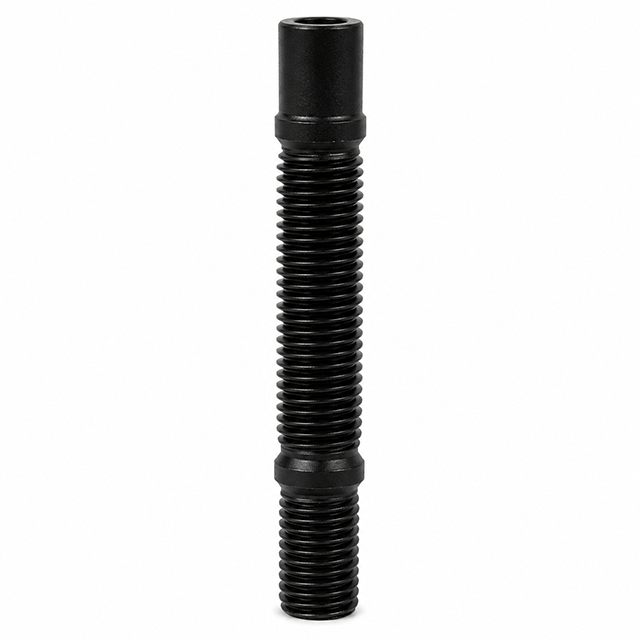

(Stud Conversion)

• Type: Stud Conversion
• Thread Size: M12x1.5
• Length: 68 MM & 90 MM
• Hex : Allen Drive
• Material: 10.9 Steel
• Finish: Black
• Torque Specs: 15-18 Ft/Lbs

(Lug Nuts)

• Type: Lug Nuts
• Thread Size: M12x1.5
• Height: .80"
• Width: .90"
• Hex: 3/4" - 19 mm
• Material: 10.9 Steel
• Finish: Select Above
• Torque Specs: 95 Ft/Lbs

Vehicle Compatibility

Frequently Asked Questions

Will conical seat lug bolts work for aftermarket wheels & factory wheels?

- Yes, factory and most aftermarket wheels use a conical seat on the wheels.
