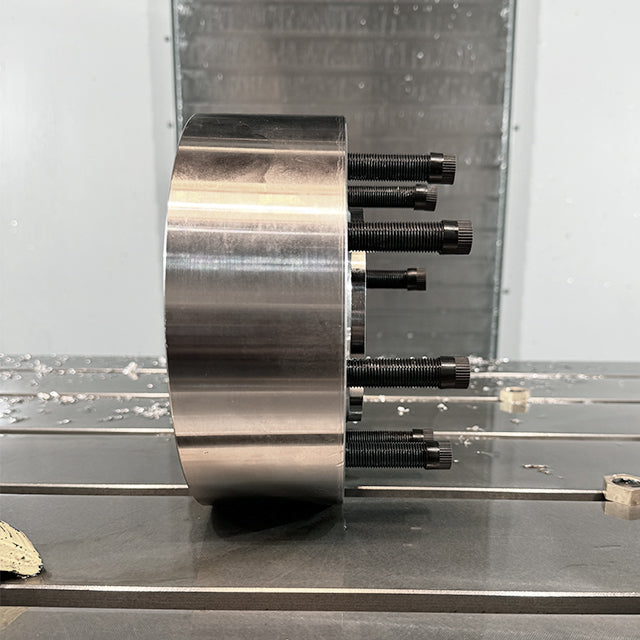

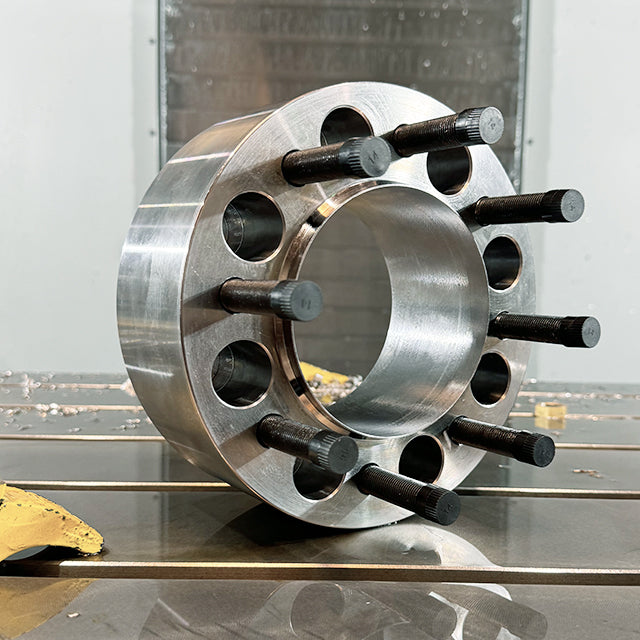

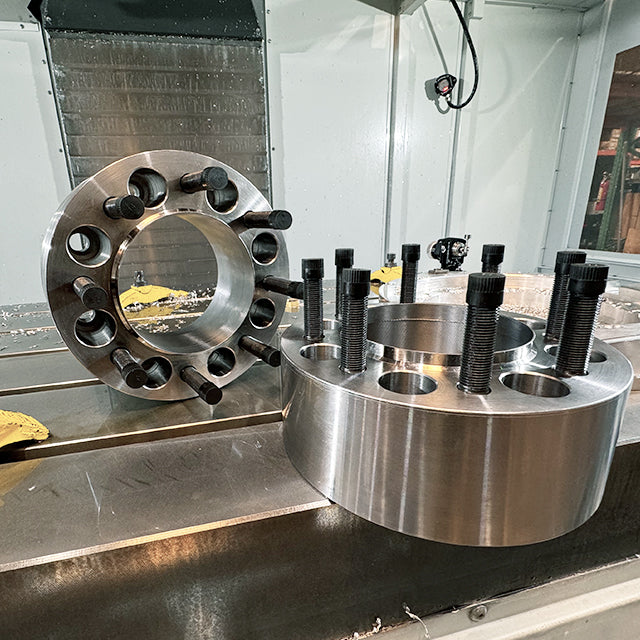

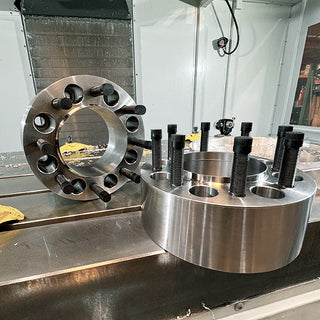

8x200 Wheel Spacers Hub Centric In Steel For 2019+ Ram 3500 Dually Truck
Fully Hub Centric Wheel Spacers
8x200 Steel Wheel Spacers
Made to Order: This product is made to order and may take up to 7 business days to ship.
Sold As: 1 Pc Wheel Spacer with Mounting Lug Nuts
These wheel spacers can be used on the front wheels, between dual rear wheels, or behind the inner rear wheels.
Rear (Behind Inner Wheel): 1" hub lip with extended studs for dually wheels setups.
Front / Between Duals: 0.38" hub lip with standard studs for single-wheel use.
Features
- Engineered to be stronger than aluminum.
- Compatible with both factory and aftermarket wheels.
- Hub/Wheel Centric design ensures no vibration at high speeds.
- Provides an aggressive stance, improving vehicle appearance.
- Specifically designed for extreme duty vehicles and safe for towing.
- Includes all necessary mounting hardware.
- Comes with a limited lifetime warranty.
- Made in Lynwood, California, USA
Specifications
- Vehicle Bolt Pattern: 8x200 MM
- Vehicle Hub Bore: 141 MM
- Wheel Bolt Pattern: 8x200 MM
- Wheel Bore: 141 MM
- Thread Pitch: 14x1.5
- Thickness: 1" - 5"
- Lip Thickness: 0.38" | 1" For Rear (Behind Inner Wheel)
- Material: 1018 Steel
- Hardware: Grade 8
- Finish: Raw Steel
- Torque Specs: Factory specs recommended
Vehicle Compatibility
| Year | Make | Model | Thread Pitch |
|---|---|---|---|
| 2019-2026 | Ram | 3500 Dually Truck | M14x1.5 |
Frequently Asked Questions
Will using wheel spacers or adapters reduce the towing capacity?
No, using wheel spacers will not reduce your vehicle’s towing capacity. If your truck is rated to handle the load, our wheel spacers and adapters are built to handle it as well. We manufacture these using American-grade 1018 steel, known for its superior strength, durability, and resistance to fatigue under heavy loads. This setup has been tested on a 2021 Ram 3500 rated to tow 33,000 lbs, with zero issues—proving that when properly engineered and installed, steel wheel adapters are more than capable of handling extreme towing demands.
Installation Instructions
- It is very important that your studs do not extend past the face of the wheel spacer/adapter. If they do, you will need to trim them down.
- Minimal trimming of your factory studs is required for adapters 1.5" or smaller.
- Torque Specifications: Use factory torque specifications to mount the wheel spacer adapter and your wheels.
- It is recommended to use blue or red Loctite on the vehicle stud side.
Keywords: 8x200 wheel spacers , 3500 dually, dually wheels, ram dually, dually rims
