Venum Wheel
5x110 MM To 5x4.75" Wheel Adapters Hub Centric Conversion Billet
$63.05
/
Sold out
Shipping calculated at checkout.
VW-HCA-5110/547515MM125-651/669+SH125
Product information

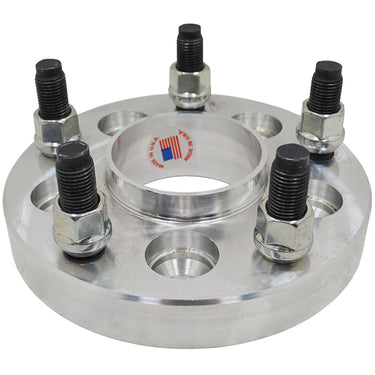

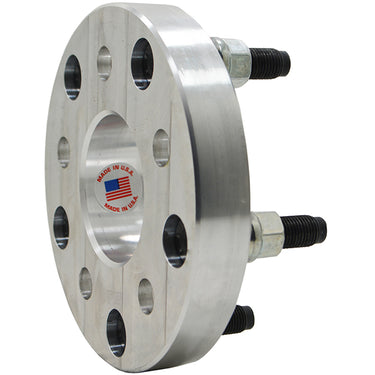

5x110 MM To 5x4.75" Wheel Adapters Hub Centric Conversion Billet
** This Product Is Made To Order, May Take Up To 7 Business Days To Ship **
Sold As : 1 Pc Wheel Spacer Adapter With Mounting Lug Nuts
(If You Need A Complete Set, Select 4 Under Quantity)
Custom Wheel Spacers Available
SPECIFICATIONS
Wheel Spacer Adapter
- Vehicle Bolt Pattern: 5x110 MM
- Vehicle Hub Bore: 65.1 MM
- Wheel Bolt Pattern: 5x4.75"
- Wheel Bore: 66.9 MM | 70.3 MM | 72.56 MM | 74.1 MM
- Thread Pitch: 12x1.25
- Thickness: Select Above
- Material : Billet Aluminum 6061 T-6
- Finish: Raw / Black Finish - Depends on Material Availability
- Hardware Included: Yes (Pressed In Studs & Lug Nuts)
- Hardware Grade: 10.9 Steel
- Torque Specs: Factory Specs Recommended

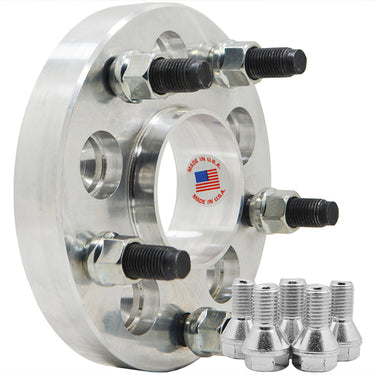

Lug Bolts
- Quantity: 5 Pcs Per Wheel Spacer
- Hex Size: 17 MM Short Head
- Seat: Conical
- Thread Pitch: 12x1.25
- Shank Length: 18 MM
- Torque Specs: Factory Specs Recommended
FEATURES
- Will Work With Factory & Aftermarket Wheels
- Hub/Wheel Centric: Will Not Vibrate At High Speeds
- Improve Vehicles Handling Characteristics
- Improve Incorrect Wheel Offsets
- Enhance Vehicle Appearance
- Installation Hardware Included
VEHICLE COMPATIBILTY
| Year |
Make |
Model | Thread Pitch |
| 2015-2017 |
Chrysler |
200 |
12x1.25 |
| 2013-2016 |
Dodge |
Dart |
12x1.25 |
| 2014-2021 |
Jeep |
Cherokee |
12x1.25 |
| 2018-2022 |
Jeep | Compass |
12x1.25 |
| 2015-2022 |
Jeep | Renegade |
12x1.25 |
INSTALLATION INSTRUCTIONS
- Detailed Installation Instructions Will Be Uploaded.
PRODUCT VIDEOS
- Product Videos Will Be Updated Soon
WARRANTY
- Limited Lifetime Warranty
