Venum Wheel

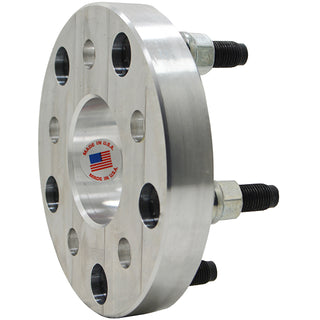

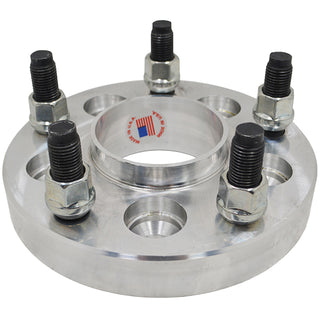

5x100 MM To 5x5.5" Wheel Adapters Hub Centric Conversion For Volkswagen

$71.10
Shipping calculated at checkout.
VW-HCA-5100/555015MM141-571/778+SH141
Qty | Thickness
5x100 MM Hub Bore
5x5.5" MM Wheel Bore
5x100 MM To 5x5.5" Wheel Adapters Hub Centric Conversion For Volkswagen

** This Product Is Made To Order, May Take Up To 5 Business Days To Ship **

Sold As : 1 Pc Wheel Spacers With Mounting Lug Bolts/ Lug Nuts
(If You Need A Complete Set, Select 4 Under Quantity)

Custom Wheel Spacers Available

SPECIFICATIONS

Wheel Spacer

  • Vehicle Bolt Pattern: 5x100 MM
  • Vehicle Hub Bore: 57.1 MM
  • Wheel Bolt Pattern: 5x5.5"
  • Wheel Bore: 77.8 MM | 87 MM | 108 MM
  • Thread Pitch: 14x1.5
  • Thickness: Select Above
  • Material : Billet Aluminum 6061 T-6
  • Hardware: 10.9 Steel
  • Finish: Raw / Black Finish Depends on Material Availability
  • Torque Specs: Factory Specs Recommended

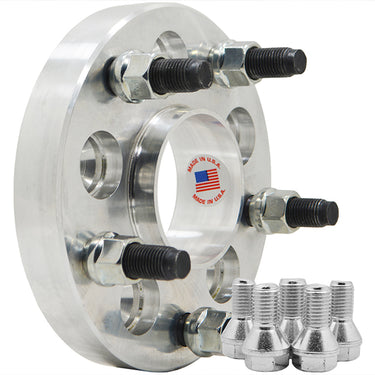

Lug Bolts

  • Quantity: 5 Pcs Per Wheel Spacer
  • Hex Size: 17 MM Short Head
  • Seat: Conical
  • Thread Pitch: 14x1.5
  • Shank Length: 18 MM
  • Torque Specs: Factory Specs Recommended
  • Replacement Part #: VW-C1415-18SH

FEATURES

  • Will Work With Factory & Aftermarket Wheels
  • Hub/Wheel Centric: Will Not Vibrate At High Speeds
  • Improve Vehicles Handling Characteristics
  • Improve Incorrect Wheel Offsets
  • Enhance Vehicle Appearance
  • Installation Hardware Included

VEHICLE COMPATIBILTY

Year Make
Model Thread Pitch
1998-2010
Volkswagen
Beetle
14x1.5
1992-1998
Volkswagen Golf (5 Lug)
14x1.5
1999-2006
Volkswagen Golf GL-GLS
14x1.5
1999-2005
Volkswagen GTI
14x1.5
1992-1998
Volkswagen Jetta (5 Lug)
14x1.5
2001-2005
Volkswagen Jetta (excluding 5th generation) 14x1.5
1990-1997
Volkswagen
Passat (5 Lug)
14x1.5

INSTALLATION INSTRUCTIONS

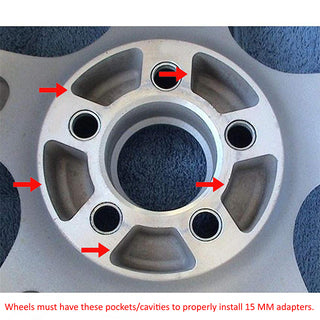

  • Minimal Trimming of Your Factory Studs Is Required For Adapters 1.5" & Smaller
  • Detailed Installation Instructions Will Be Uploaded.


    PRODUCT VIDEOS

    • Product Videos Will Be Updated Soon

    WARRANTY

    • Limited Lifetime Warranty
