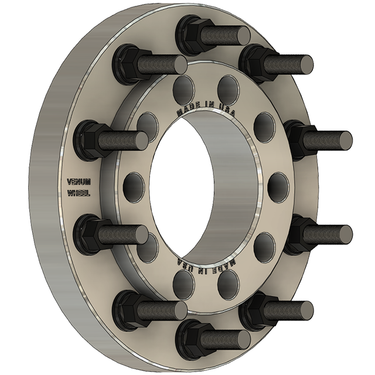

Ford & Ram 10x225 MM To MRAP 10x335 MM 10 Lug Military Wheels Billet Adapters

Ford & Ram 10x225 MM To MRAP 10x335 MM 10 Lug Military Wheels Billet Adapters

** This Product Is Made To Order, May Take Up To 10 Business Days To Ship **

Made Out of USA Grade 6061 T-6 Aluminum Billet Bars.

These Adapters Will Change Your Truck's 10x225 MM Bolt Pattern To 10x335 MM ( Military Mrap Steel Aluminum Wheels ).

Fully Hub Centric.

Installation Hardware Included.

1.5" Thick Is The Most Common Thickness For This Conversion.

Looking For A Custom Size Or Thickness? Give Us A Call ( 310 ) 763-1437

FEATURES

• Made Out of 6061 T-6 Aluminum Billet Bars
• Allows You To Put Military Wheels , Steel & Aluminum Singles
• Hub/Wheel Centric: Will Not Vibrate At High Speeds
• Specifically Design For Extreme Duty Vehicles, Towing Safe

• We Have Towed 36,000 LBS With Our Adapters
• Mounting Hardware Included

SPECIFICATIONS

• Vehicle Bolt Pattern: 10x225 MM

• Vehicle Hub Bore: 170.1 MM
• Wheel Bolt Pattern: 10x335 MM

• Wheel Bore: 281 MM
• Thread Pitch: 22x1.5
• Thickness: 1.5"

• Wheel Lip: 0.50"
• Material: Billet Aluminum 6061 T-6
• Hardware: 10.9 Steel
• Finish: Raw Aluminum
• Torque Specs: Factory Specs Recommended
• Pressed In Studs & Lug Nuts Included

VEHICLE COMPATIBILITY

• New Wheels Being Installed Must Be 10x335 MM.


FREQUENTLY ASKED QUESTIONS

• What Is The Difference Between Aluminum And Steel?

The main difference between aluminum and steel is the weight difference which affects the rotating mass. Tensile strength for our billet 6061 t-6 aluminum is 45,000 PSI and for steel is 53,700 PSI. Our Billet Adapters are 2X thicker than steel, thus making them almost double on combined PSI. A 1.5" Aluminum Adapter weighs about 20 LBS, and a 1.5" Steel Adapter weighs close to 100 lbs. This extra rotating mass is unnecessary. Below is a side-by-side comparison of the 1.5" Aluminum and 0.75" Steel, which are the standard sizes we sell. The wheels you are going to be installing will most likely be made out of aluminum. In fact, Big Rigs that carry 70,000+ lbs. come with aluminum wheels. We sell both steel and aluminum adapters, and at the end of the day it's what makes you comfortable and works for your application.

• Why Is The 1.5" Thick Adapters The Most Standard Size In Aluminum?


This 1.5" is the most standard because if we were to make them any smaller, you will either have to notch your wheel, and/or use the reverse studs method. Both methods are complex, so a 1.5" Thick adapters will avoid both issues. The bolt pattern is 225 MM and the wheel's hub bore is 220.1 MM. Anything smaller than 1.25" will not clear the wheel.

• What Is The Maximum Towing Capacity?

The maximum towing capacity we have tested on our adapters is 36,000 lbs. We tested this on a 2020 Ram 3500 Diesel which is rated to tow 32,000 lbs. with zero issues.

• My Stud Got Damaged, Can I Buy Replacement Studs?

If for any reason you need to get replacement studs, we also carry them. Please look at the Lug Nuts & Spacers tab for more info.
