Venum Wheel

8x180 MM To 8x210 MM Wheel Adapters Hub Centric Dually Conversion

$210.00
Shipping calculated at checkout.
VW-HCA-8180/821015141-124/154-FRT
Hub Bore
Wheel Bore
Kit
Hub Bore
Wheel Bore
Kit

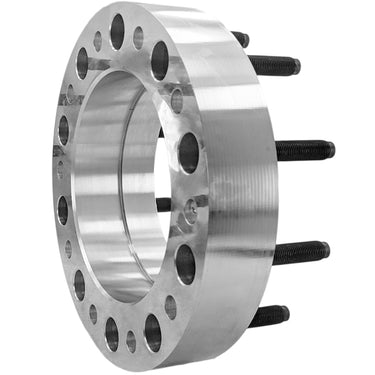

8x180 MM To 8x210 MM Wheel Adapters Hub Centric Dually Conversion

** This Product Is Made To Order, May Take Up To 7 Business Days To Ship **

Made Out of USA Grade 6061 T-6 Aluminum Billet Bars.

Fully Hub Centric.

Installation Hardware Included.

Looking For A Custom Size Or Thickness? Give Us A Call ( 310 ) 763-1437

Fast 1-2 Days Turn Around Time For Custom Orders.

FEATURES

  • These 8x180 MM To 8x210 MM Wheel Adapters Will Work With Dually Wheels
  • Hub/Wheel Centric: Will Not Vibrate At High Speeds
  • Improve Vehicles Handling Characteristics
  • Improve Incorrect Wheel Offsets
  • Enhance Vehicle Appearance; Aggressive Stance
  • Made Out of 6061 T-6 Aluminum Billet Bars
  • Specifically Design For Extreme Duty Vehicles, Towing Safe
  • Mounting Hardware Included
  • Limited Lifetime Warranty

SPECIFICATIONS

  • Vehicle Bolt Pattern: 8x180 MM
  • Vehicle Hub Bore: 124.1 MM
  • Wheel Bolt Pattern: 8x210 MM
  • Wheel Bore: 154.1 MM
  • Thread Pitch: 14x1.5
  • Thickness: 1.5" - 2"
  • Material : Billet Aluminum 6061 T-6
  • Hardware: 10.9 Steel
  • Finish: Raw / Black Finish Depends on Material Availability
  • Torque Specs: Factory Specs Recommended
  • Rear Adapters Come With A Longer Lip To Accommodate Both Wheels

VEHICLE COMPATIBILTY

Year Make
Model Thread Pitch
2011-2021
Chevrolet
Silverado 2500 HD
14x1.5
2011-2021 Chevrolet Silverado 3500 HD SRW 14x1.5
2011-2021 GMC
Sierra 2500 HD
14x1.5
2011-2021 GMC Sierra 3500 HD SRW 14x1.5

FREQUENTLY ASKED QUESTIONS

  • What Is The Maximum Towing Capacity?

The maximum towing capacity we have tested on our adapters is 28,000 lbs. We tested this on a 2020 Ram 3500 which is rated to tow 33,000 lbs. with zero issues.

  • My Stud Got Damaged, Can I Buy Replacement Studs?

If for any reason you need to get replacement studs, we also carry them. Please look at the Lug Nuts & Spacers tab for more info.

INSTALLATION INSTRUCTIONS

  • Minimal Trimming of Your Factory Studs Is Required For Adapters 1.5" & Smaller
  • Detailed Installation Instructions Will Be Uploaded.


    PRODUCT VIDEOS

    • Product Videos Will Be Updated Soon

    LUG NUTS & SPACERS

    Lug Nuts

    Thread Pitch Seat Style Link
    14x1.5
    Multiple
    Multiple Lug Nuts

    Wheel Spacers

    Bolt Pattern Wheel Pattern Hub Bore Link
    8x210 MM
    8x210 MM
    154.1 MM Wheel Spacers

    WARRANTY

    • Further Warranty Information Will Be Updated Soon
