Description

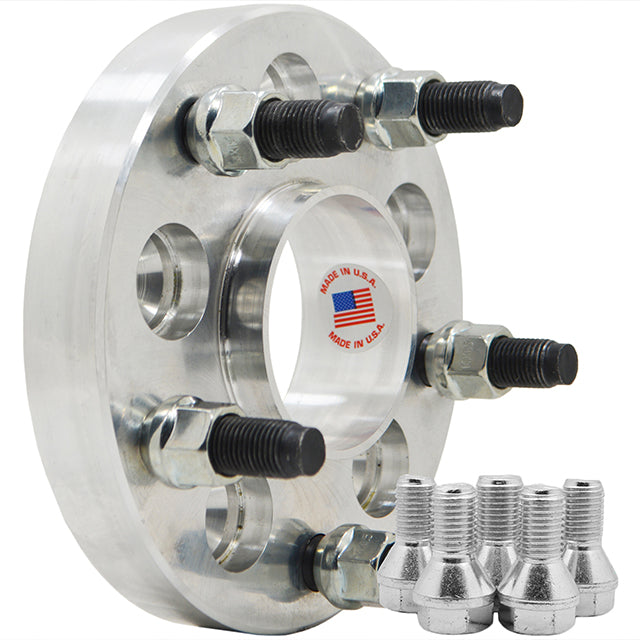

5x112 MM To 5x120 MM Wheel Adapters Hub Centric Conversion For Audi & Mercedes Benz
** This Product Is Made To Order, May Take Up To 7 Business Days To Ship **
Sold As : 1 Pc Wheel Spacers With Mounting Lug Bolts/ Lug Nuts
(If You Need A Complete Set, Select 4 Under Quantity)
Custom Wheel Spacers Available
SPECIFICATIONS
Wheel Spacer
- Vehicle Bolt Pattern: 5x112 MM
- Vehicle Hub Bore: 57.1 MM | 66.56 MM
- Wheel Bolt Pattern: 5x120 MM
- Wheel Bore: 66.9 MM ( Many Wheel Hub Sizes Achievable With Hub Centric Rings )
- Thread Pitch: 14x1.5
- Thickness: Select Above
- Material : Billet Aluminum 6061 T-6
- Hardware: 10.9 Steel
- Finish: Raw / Black Finish - Depends on Material Availability
- Torque Specs: Factory Specs Recommended
Lug Bolts
- Quantity: 5 Pcs Per Wheel Spacer
- Hex Size: 17 MM Short Head
- Seat: Conical
- Thread Pitch: 14x1.5
- Shank Length: 18 MM
- Torque Specs: Factory Specs Recommended
- Replacement Part #: VW-C1415-18SH
FEATURES
- Will Work With Factory & Aftermarket Wheels
- Hub/Wheel Centric: Will Not Vibrate At High Speeds
- Improve Vehicles Handling Characteristics
- Improve Incorrect Wheel Offsets
- Enhance Vehicle Appearance
- Installation Hardware Included
VEHICLE COMPATIBILTY
| Year |
Make |
Model | Thread Pitch |
| 2013-2020 |
Audi |
All Road |
14x1.5 |
| 2009-2020 |
Audi |
A4 |
14x1.5 |
| 2009-2020 | Audi | A5 |
14x1.5 |
| 2012-2020 |
Audi | A6 |
14x1.5 |
| 2012-2020 | Audi | A7 |
14x1.5 |
| 2009-2020 |
Audi | A8 |
14x1.5 |
| 2009-2020 | Audi | S4 | 14x1.5 |
| 2009-2020 | Audi | S5 |
14x1.5 |
| 2009-2020 | Audi | S6 |
14x1.5 |
| 2009-2020 | Audi | S7 |
14x1.5 |
| 2012-2020 | Audi | RS5 |
14x1.5 |
| 2014-2020 | Audi | RS7 |
14x1.5 |
| 2009-2020 | Audi | Q5 | 14x1.5 |
| 2014-2020 | Audi | SQ5 |
14x1.5 |
| 2008-2014 | Mercedes | C350 | 14x1.5 |
| 2008-2014 | Mercedes | C63 |
14x1.5 |
| 2015-2019 | Mercedes | C200 |
14x1.5 |
| 2015-2019 | Mercedes | C220 |
14x1.5 |
| 2015-2019 | Mercedes | C250 |
14x1.5 |
| 2015-2019 | Mercedes | C300 |
14x1.5 |
| 2015-2019 | Mercedes | C63 |
14x1.5 |
| 2010-2015 | Mercedes | E350 |
14x1.5 |
| 2006-2013 | Mercedes | S320 |
14x1.5 |
| 2006-2013 | Mercedes | S350 |
14x1.5 |
| 2006-2013 | Mercedes | S450 |
14x1.5 |
| 2006-2013 | Mercedes | S550 |
14x1.5 |
| 2006-2013 | Mercedes | S600 |
14x1.5 |
| 2006-2013 | Mercedes | S63 |
14x1.5 |
| 2006-2012 | Mercedes | R350 |
14x1.5 |
| 2006-2012 | Mercedes | R500 |
14x1.5 |
| 2012-2019 | Mercedes | ML250 |
14x1.5 |
| 2012-2019 | Mercedes | ML350 |
14x1.5 |
| 2012-2019 | Mercedes | ML400 |
14x1.5 |
| 2012-2019 | Mercedes | GLE400 |
14x1.5 |
| 2012-2019 | Mercedes | ML550 |
14x1.5 |
| 2012-2019 | Mercedes | ML63 |
14x1.5 |
| 2012-2019 | Mercedes | GLE63 |
14x1.5 |
| 2008-2015 | Mercedes | GLK280 |
14x1.5 |
| 2008-2015 | Mercedes | GLK300 | 14x1.5 |
| 2008-2015 | Mercedes | GLK350 | 14x1.5 |
| 2014-2019 | Mercedes | GL400 |
14x1.5 |
| 2013-2019 | Mercedes | GL450 |
14x1.5 |
| 2012-2019 | Mercedes | GL500 |
14x1.5 |
| 2013-2019 | Mercedes | GL63 |
14x1.5 |
| 2019+ | Mercedes | GLS450 |
14x1.5 |
| 2019+ | Mercedes | GLS580 |
14x1.5 |
INSTALLATION INSTRUCTIONS
- Minimal Trimming of Your Factory Studs Is Required For Adapters 1.5" & Smaller
- Detailed Installation Instructions Will Be Uploaded.
PRODUCT VIDEOS
- Product Videos Will Be Updated Soon
WARRANTY
- Limited Lifetime Warranty
